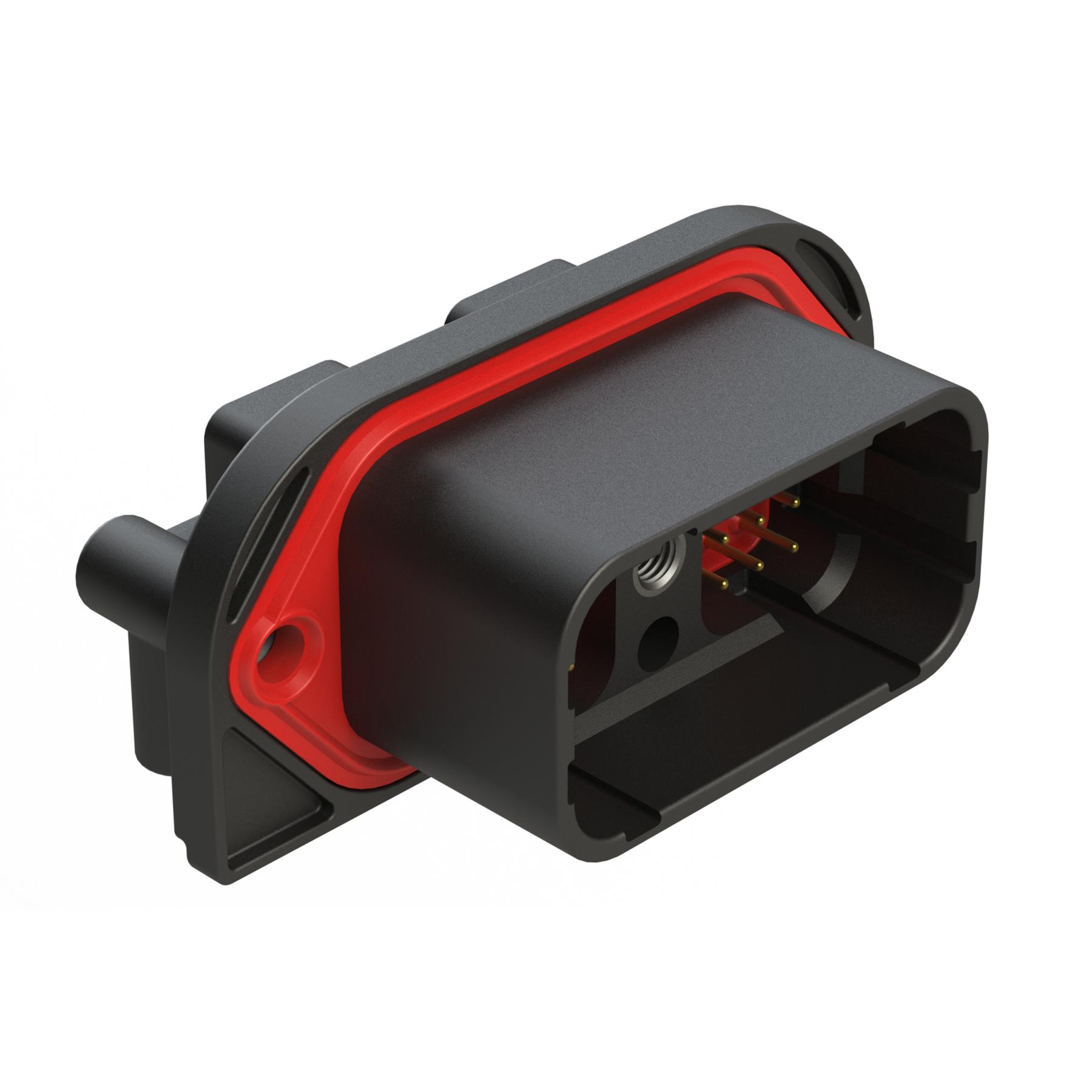

ARC23-24PC-BM01SP1

Product Detailed Parameters

• Description：24 POSITION PCB RECEPTACLE, PIN,
• Series：ARCSeries™
• Mfr：Amphenol Sine Systems Corp
• Package：Box
• Connector Type：Receptacle
• Contact Type：Male Pin
• Pitch - Mating：0.174" (4.42mm)
• Number of Positions：24
• Number of Rows：4
• Row Spacing - Mating：0.173" (4.40mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Panel Mount, Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：0.125" (3.18mm)
• Overall Contact Length：-
• Insulation Height：1.500" (38.10mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：7.5A
• Voltage Rating：250V
