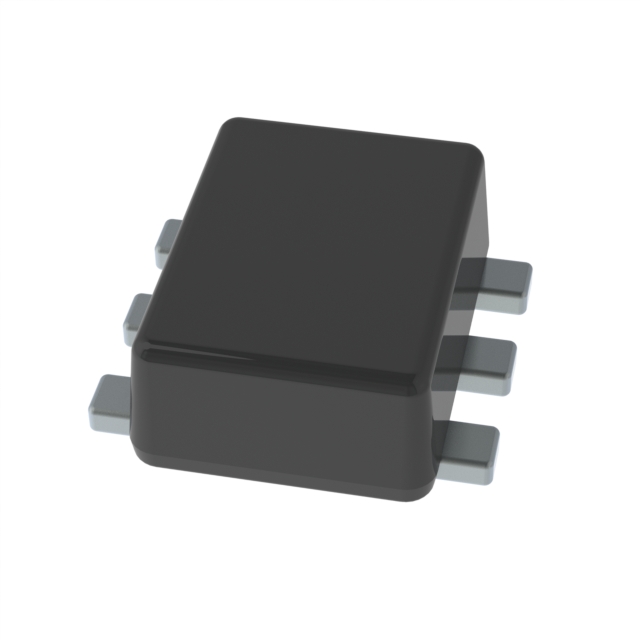

BAV199STB6_R1_00001

BAV199STB6_R1_00001

$0.21000
  • Description：DIODE ARRAY GP 100V 200MA SOT563
  • Series：-

SKU:ab0beecbdd75 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：DIODE ARRAY GP 100V 200MA SOT563
  • Series：-
  • Mfr：Panjit International Inc.
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Diode Configuration：2 Pair Series Connection
  • Technology：Standard
  • Voltage - DC Reverse (Vr) (Max)：100 V
  • Current - Average Rectified (Io) (per Diode)：200mA (DC)
  • Voltage - Forward (Vf) (Max) @ If：1.25 V @ 150 mA
  • Speed：Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)：3 µs
  • Current - Reverse Leakage @ Vr：5 nA @ 75 V
  • Operating Temperature - Junction：-55°C ~ 150°C
  • Mounting Type：Surface Mount
  • Package / Case：SOT-563, SOT-666
  • Supplier Device Package：SOT-563
  • Grade：-
  • Qualification：-

Download product information
