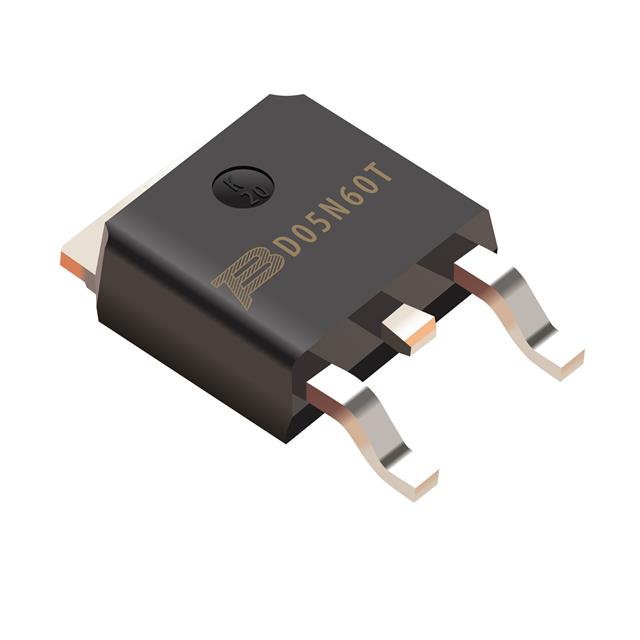

BIDD05N60T

Product Detailed Parameters

• Description：IGBT TRENCH FS 600V 10A TO-252
• Series：-
• Mfr：Bourns Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• IGBT Type：Trench Field Stop
• Voltage - Collector Emitter Breakdown (Max)：600 V
• Current - Collector (Ic) (Max)：10:00 AM
• Current - Collector Pulsed (Icm)：15 A
• Vce(on) (Max) @ Vge, Ic：2V @ 15V, 5A
• Power - Max：82 W
• Switching Energy：200µJ (on), 70µJ (off)
• Input Type：Standard
• Gate Charge：18.5 nC
• Td (on/off) @ 25°C：7ns/18ns
• Test Condition：400V, 5A, 10Ohm, 15V
• Reverse Recovery Time (trr)：40 ns
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
• Supplier Device Package：TO-252 (DPAK)
• Grade：-
• Qualification：-
