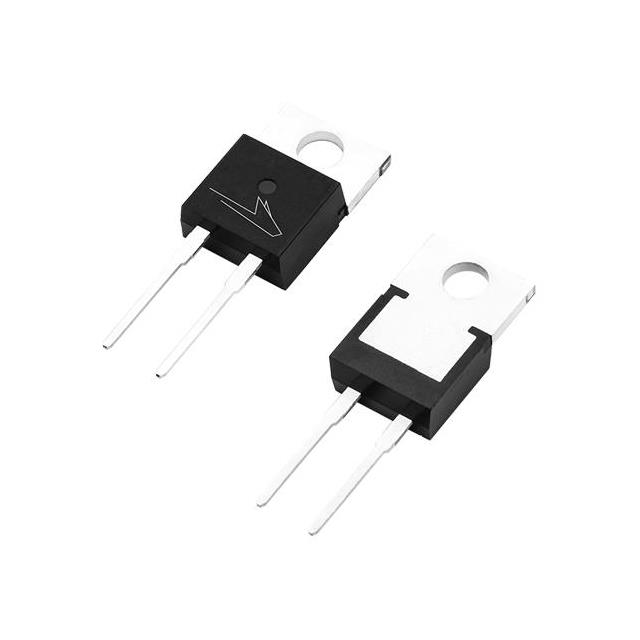

C3D03060A

Product Detailed Parameters

• Description：DIODE SIL CARB 600V 11A TO220-2
• Series：Z-Rec®
• Mfr：Wolfspeed, Inc.
• Package：Tube
• Technology：SiC (Silicon Carbide) Schottky
• Voltage - DC Reverse (Vr) (Max)：600 V
• Current - Average Rectified (Io)：11A
• Voltage - Forward (Vf) (Max) @ If：1.7 V @ 3 A
• Speed：No Recovery Time > 500mA (Io)
• Reverse Recovery Time (trr)：0 ns
• Current - Reverse Leakage @ Vr：50 µA @ 600 V
• Capacitance @ Vr, F：155pF @ 0V, 1MHz
• Mounting Type：Through Hole
• Package / Case：TO-220-2
• Supplier Device Package：TO-220-2
• Operating Temperature - Junction：-55°C ~ 175°C
• Grade：-
• Qualification：-
