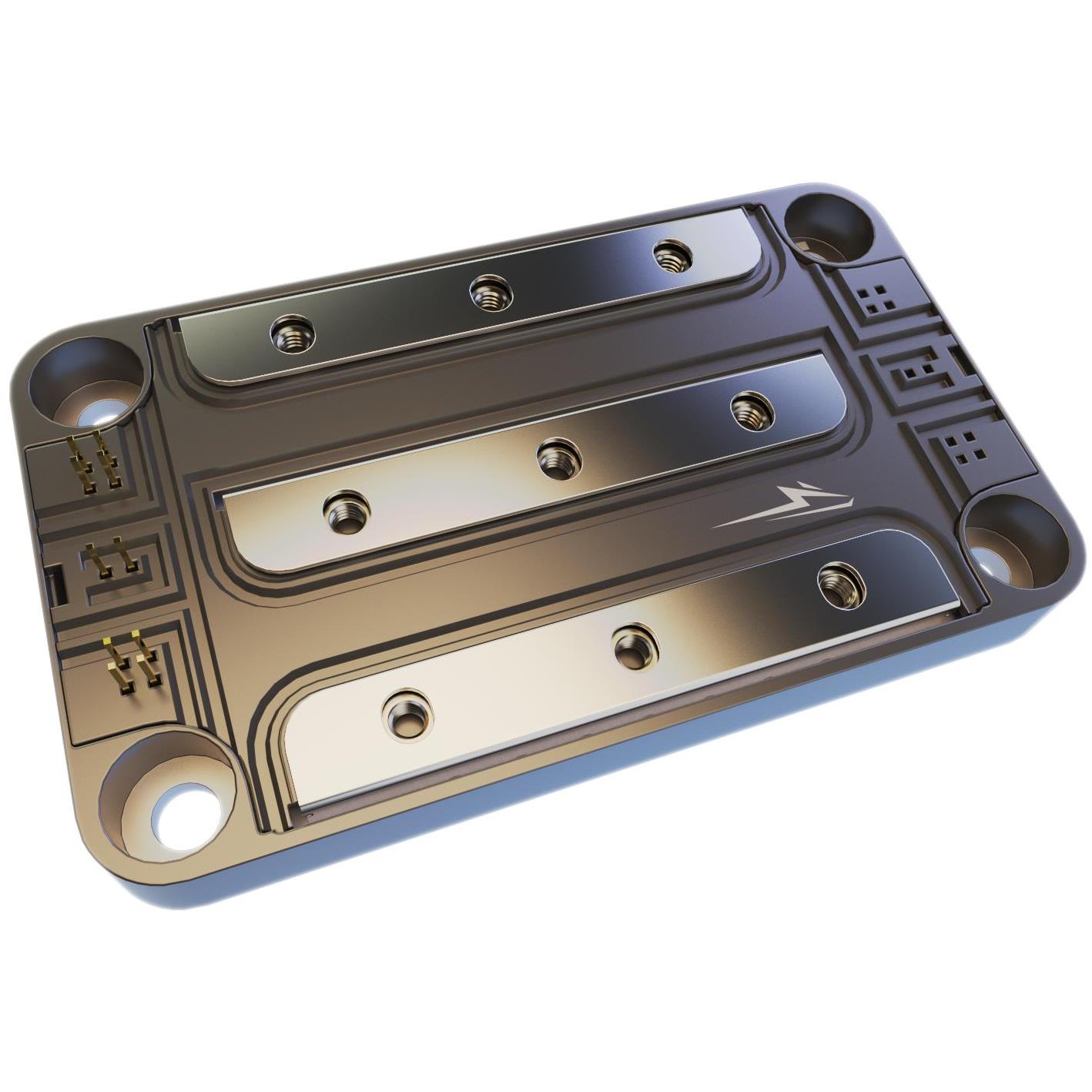

CAB500M17HM3

Product Detailed Parameters

• Description：MOSFET 2N-CH 1700V 653A MODULE
• Series：-
• Mfr：Wolfspeed, Inc.
• Package：Bulk
• Technology：Silicon Carbide (SiC)
• Configuration：2 N-Channel (Dual)
• FET Feature：-
• Drain to Source Voltage (Vdss)：1700V (1.7kV)
• Current - Continuous Drain (Id) @ 25°C：653A (Tc)
• Rds On (Max) @ Id, Vgs：2.6mOhm @ 500A, 15V
• Vgs(th) (Max) @ Id：3.6V @ 203mA
• Gate Charge (Qg) (Max) @ Vgs：1992nC @ 15V
• Input Capacitance (Ciss) (Max) @ Vds：64900pF @ 1200V
• Power - Max：-
• Operating Temperature：-40°C ~ 175°C (TJ)
• Mounting Type：Chassis Mount
• Package / Case：Module
• Supplier Device Package：Module
• Grade：-
• Qualification：-

Download product information
