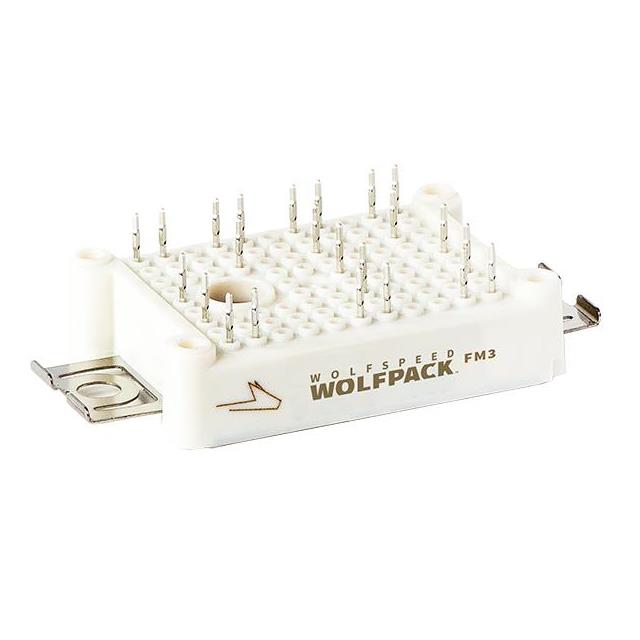

CCB032M12FM3T

Product Detailed Parameters

• Description：MOSFET 6N-CH 1200V 40A MODULE
• Series：WolfPACK™
• Mfr：Wolfspeed, Inc.
• Package：Box
• Technology：Silicon Carbide (SiC)
• Configuration：6 N-Channel (3-Phase Bridge)
• FET Feature：-
• Drain to Source Voltage (Vdss)：1200V (1.2kV)
• Current - Continuous Drain (Id) @ 25°C：40A (Tj)
• Rds On (Max) @ Id, Vgs：42.6mOhm @ 30A, 15V
• Vgs(th) (Max) @ Id：3.6V @ 11.5mA
• Gate Charge (Qg) (Max) @ Vgs：118nC @ 15V
• Input Capacitance (Ciss) (Max) @ Vds：3400pF @ 800V
• Power - Max：-
• Operating Temperature：-40°C ~ 150°C (TJ)
• Mounting Type：Chassis Mount
• Package / Case：Module
• Supplier Device Package：Module
• Grade：-
• Qualification：-
