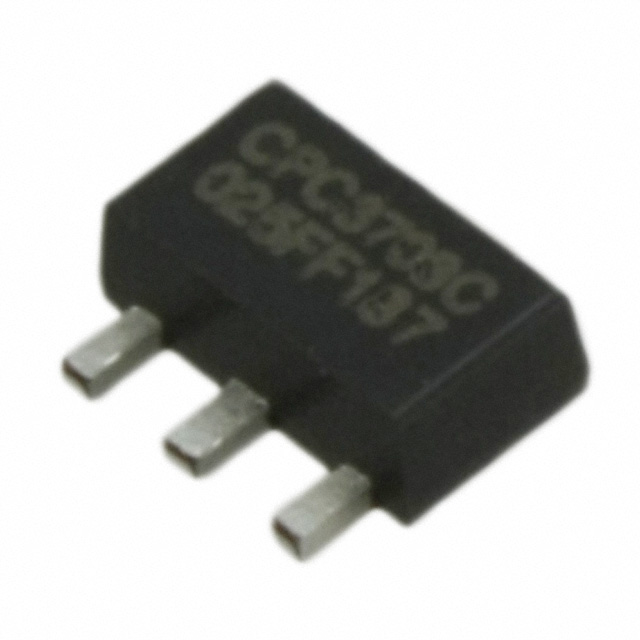

CPC3703C

Product Detailed Parameters

• Description：MOSFET N-CH 250V 360MA SOT89-3
• Series：-
• Mfr：IXYS Integrated Circuits Division
• Package：Tube
• FET Type：N-Channel, Depletion Mode
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：250 V
• Current - Continuous Drain (Id) @ 25°C：360mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：0V
• Rds On (Max) @ Id, Vgs：4Ohm @ 200mA, 0V
• Vgs(th) (Max) @ Id：-
• Gate Charge (Qg) (Max) @ Vgs：-
• Vgs (Max)：±15V
• Input Capacitance (Ciss) (Max) @ Vds：350 pF @ 25 V
• FET Feature：-
• Power Dissipation (Max)：1.6W (Ta)
• Operating Temperature：-55°C ~ 125°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：SOT-89-3
• Package / Case：TO-243AA
