DG309BK

Product Detailed Parameters

• Description：IC SW SPST-NOX4 100OHM 16CERDIP
• Series：-
• Mfr：Harris Corporation
• Package：Bulk
• Switch Circuit：SPST - NO
• Multiplexer/Demultiplexer Circuit：1:01
• On-State Resistance (Max)：100Ohm
• Channel-to-Channel Matching (ΔRon)：-
• Voltage - Supply, Single (V+)：15V
• Voltage - Supply, Dual (V±)：±15V
• Switch Time (Ton, Toff) (Max)：200ns, 150ns
• -3db Bandwidth：-
• Charge Injection：-10pC
• Channel Capacitance (CS(off), CD(off))：11pF, 8pF
• Current - Leakage (IS(off)) (Max)：5nA
• Crosstalk：-
• Operating Temperature：-40°C ~ 85°C
• Mounting Type：Through Hole

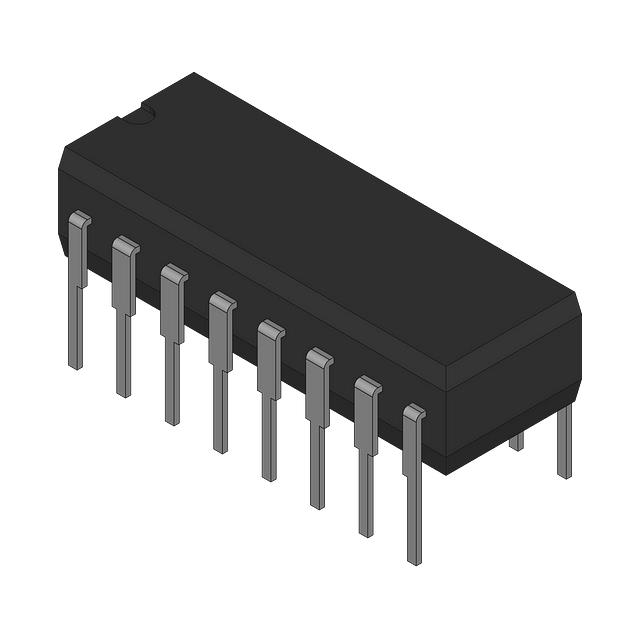

• Package / Case：16-CDIP (0.300", 7.62mm)
• Supplier Device Package：16-CERDIP
• Number of Circuits：4
• Grade：-
• Qualification：-
