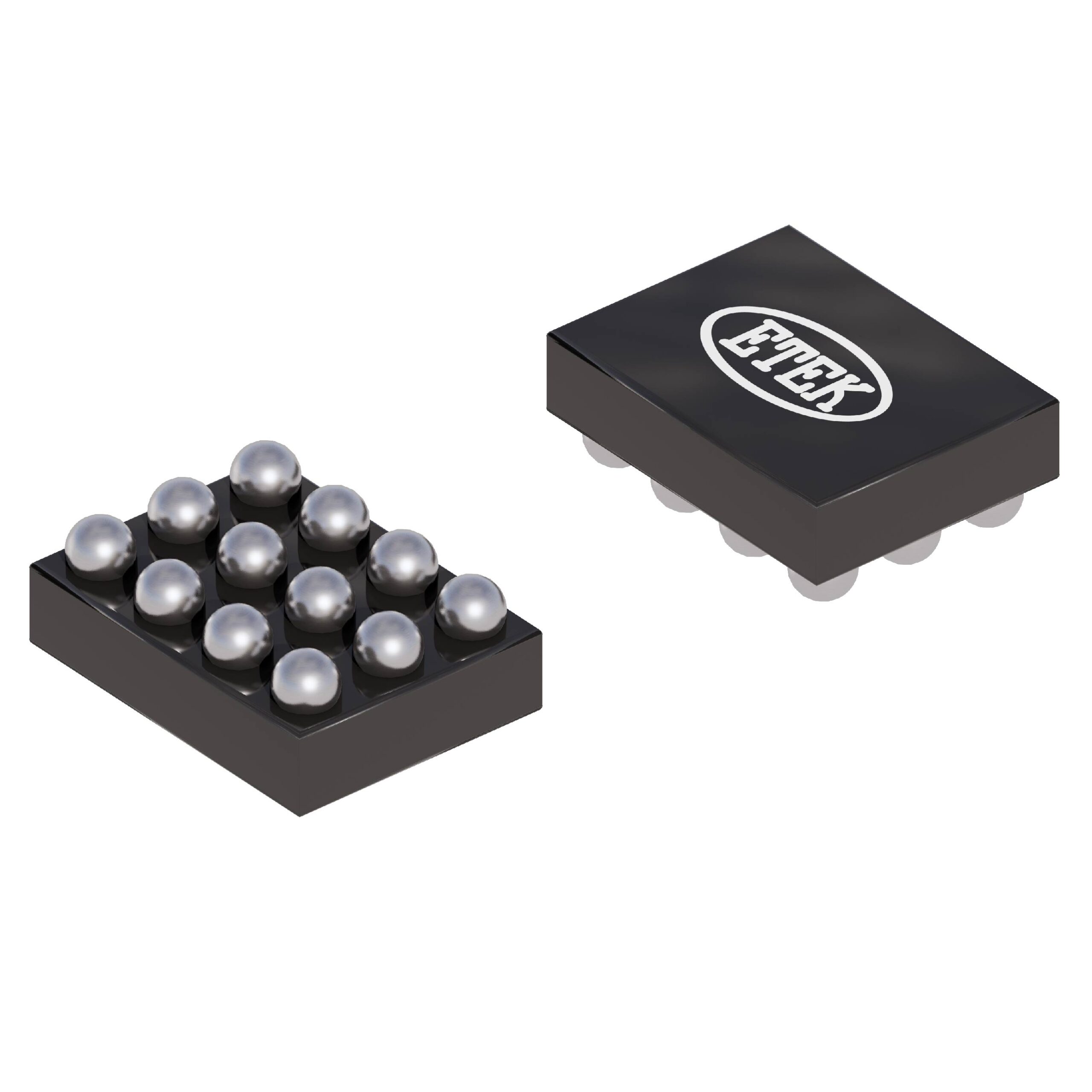

ET7460

Product Detailed Parameters

• Description：0.1,Dual, SPST
• Series：-
• Mfr：ETEK MICROELECTRONICS
• Package：Tape & Reel (TR)
• Switch Circuit：SPST - Open/Closed
• Multiplexer/Demultiplexer Circuit：1:01
• On-State Resistance (Max)：125mOhm
• Channel-to-Channel Matching (ΔRon)：10mOhm
• Voltage - Supply, Single (V+)：2.7V ~ 5.5V
• Voltage - Supply, Dual (V±)：-
• Switch Time (Ton, Toff) (Max)：60µs, 4µs
• -3db Bandwidth：100MHz
• Charge Injection：-
• Channel Capacitance (CS(off), CD(off))：-
• Current - Leakage (IS(off)) (Max)：-
• Crosstalk：-100dB @ 100kHz
• Operating Temperature：-40°C ~ 85°C (TA)
• Mounting Type：Surface Mount
• Package / Case：12-UFBGA, WLCSP
• Supplier Device Package：12-WLP (1.22x1.62)
• Number of Circuits：-
• Grade：-
• Qualification：-
