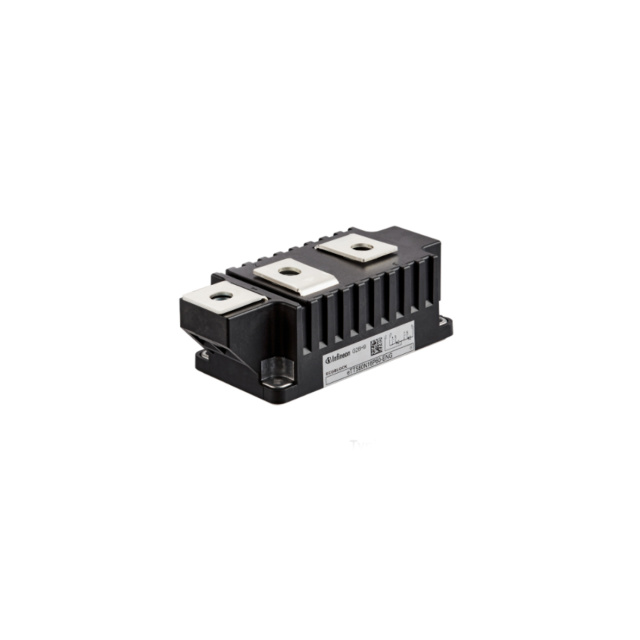

ETD580N16P60HPSA1

Product Detailed Parameters

• Description：SCR MODULE 1.6KV 700A MODULE
• Series：-
• Mfr：Infineon Technologies
• Package：Tray
• Structure：Series Connection - SCR/Diode
• Number of SCRs, Diodes：1 SCR, 1 Diode
• Voltage - Off State：1.6 kV
• Current - On State (It (AV)) (Max)：586 A
• Current - On State (It (RMS)) (Max)：700 A
• Current - Non Rep. Surge 50, 60Hz (Itsm)：16500A @ 50Hz
• Operating Temperature：-40°C ~ 135°C (TC)
• Mounting Type：Chassis Mount
• Package / Case：Module
• Voltage - Gate Trigger (Vgt) (Max)：2 V
• Current - Gate Trigger (Igt) (Max)：250 mA
• Current - Hold (Ih) (Max)：300 mA
• Grade：-
• Qualification：-
