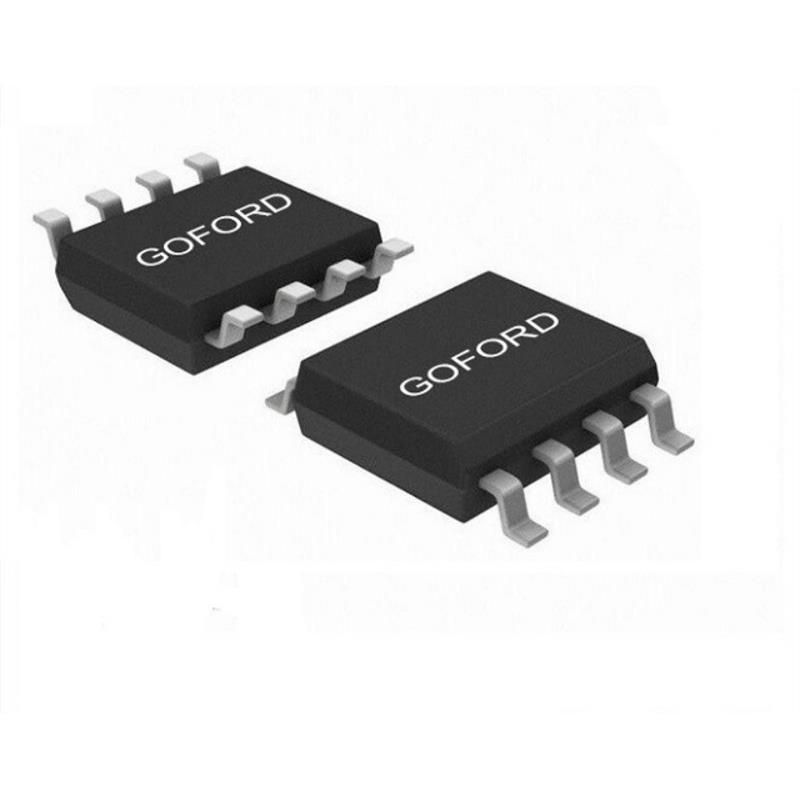

G090P02S

Product Detailed Parameters

• Description：MOSFET P-CH 20V 11A SOP-8
• Series：TrenchFET®
• Mfr：Goford Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：P-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：20 V
• Current - Continuous Drain (Id) @ 25°C：11A (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：2.5V, 4.5V
• Rds On (Max) @ Id, Vgs：9mOhm @ 1A, 4.5V
• Vgs(th) (Max) @ Id：1.1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：47 nC @ 10 V
• Vgs (Max)：±12V
• Input Capacitance (Ciss) (Max) @ Vds：2225 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：3.3W (Tc)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：8-SOP
• Package / Case：8-SOIC (0.154", 3.90mm Width)
