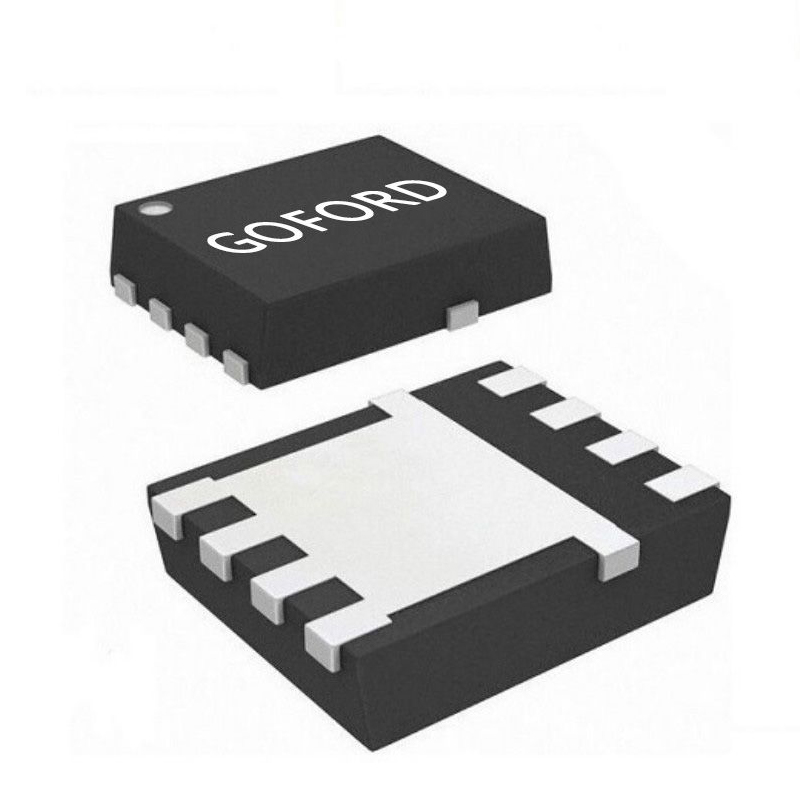

G170P02D32

Product Detailed Parameters

• Description：MOSFET 2P-CH 20V 20A 8DFN
• Series：-
• Mfr：Goford Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• Technology：MOSFET (Metal Oxide)
• Configuration：2 P-Channel
• FET Feature：-
• Drain to Source Voltage (Vdss)：20V
• Current - Continuous Drain (Id) @ 25°C：20A (Tc)
• Rds On (Max) @ Id, Vgs：21mOhm @ 6A, 4.5V
• Vgs(th) (Max) @ Id：1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：30nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds：2193pF @ 10V
• Power - Max：15W (Tc)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：8-PowerVDFN
• Supplier Device Package：8-DFN (3.15x3.05) Dual
• Grade：-
• Qualification：-
