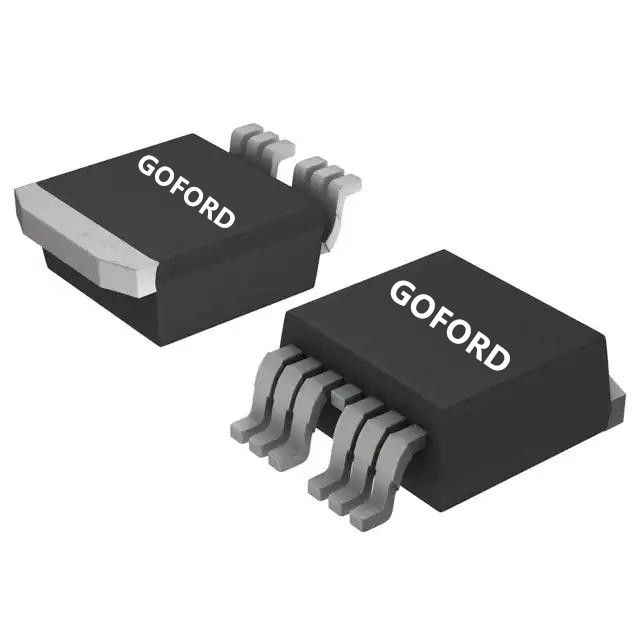

GT025N06AM6

Product Detailed Parameters

• Description：N60V,170A,RD<2.0M@10V,VTH1.2V~2.
• Series：-
• Mfr：Goford Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：60 V
• Current - Continuous Drain (Id) @ 25°C：170A (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：2mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id：2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：70 nC @ 10 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：5058 pF @ 30 V
• FET Feature：-
• Power Dissipation (Max)：215W (Tc)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：TO-263-6
• Package / Case：TO-263-7, D2PAK (6 Leads + Tab)
