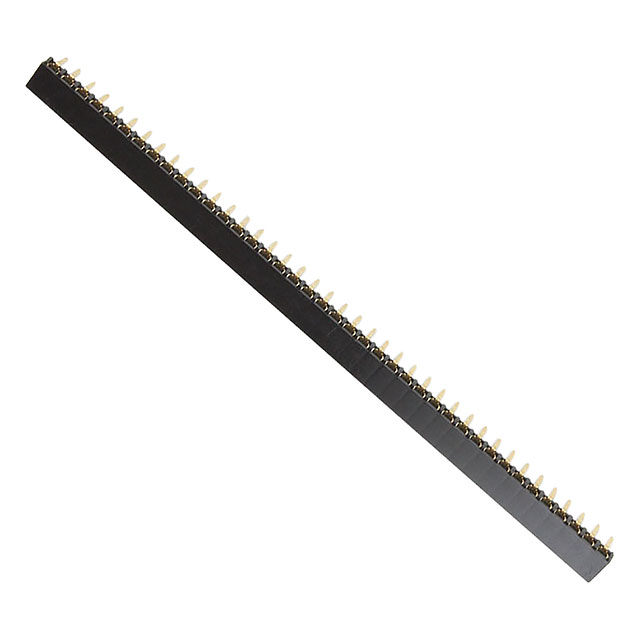

HDR100IMP40F-G-RA-TH

Product Detailed Parameters

• Description：CONN HDR 40POS 0.1 GOLD PCB R/A
• Series：Proto-Advantage
• Mfr：Chip Quik Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：-
• Insulation Height：0.098" (2.50mm)
• Contact Length - Post：0.126" (3.20mm)
• Operating Temperature：-
• Material Flammability Rating：-
• Contact Finish - Post：-
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：-
