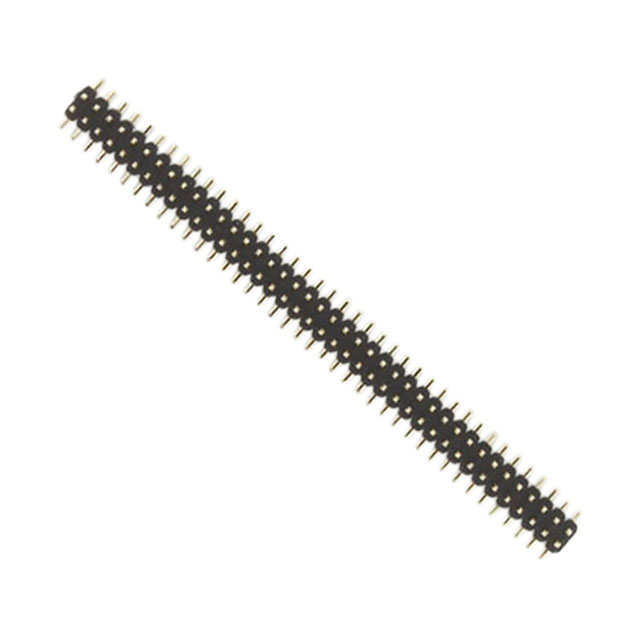

HDR127MET80M-G-V-SM

Product Detailed Parameters

• Description：CONN HEADER SMD 80POS 1.27MM
• Series：Proto-Advantage
• Mfr：Chip Quik Inc.
• Package：Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：80
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.120" (3.05mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.079" (2.00mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Gold
• Contact Material：-
• Insulation Material：-
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：-
• Current Rating (Amps)：-
• Voltage Rating：-
