J201 TO-92 3L ROHS

Product Detailed Parameters

• Description：JFET N-CH 40V 10MA TO92
• Series：J201
• Mfr：Linear Integrated Systems, Inc.
• Package：Bulk
• FET Type：N-Channel
• Voltage - Breakdown (V(BR)GSS)：40 V
• Drain to Source Voltage (Vdss)：40 V
• Current - Drain (Idss) @ Vds (Vgs=0)：200 µA @ 15 V
• Current Drain (Id) - Max：10 mA
• Voltage - Cutoff (VGS off) @ Id：300 mV @ 10 nA
• Input Capacitance (Ciss) (Max) @ Vds：4.5pF @ 15V
• Resistance - RDS(On)：-
• Power - Max：350 mW
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Through Hole

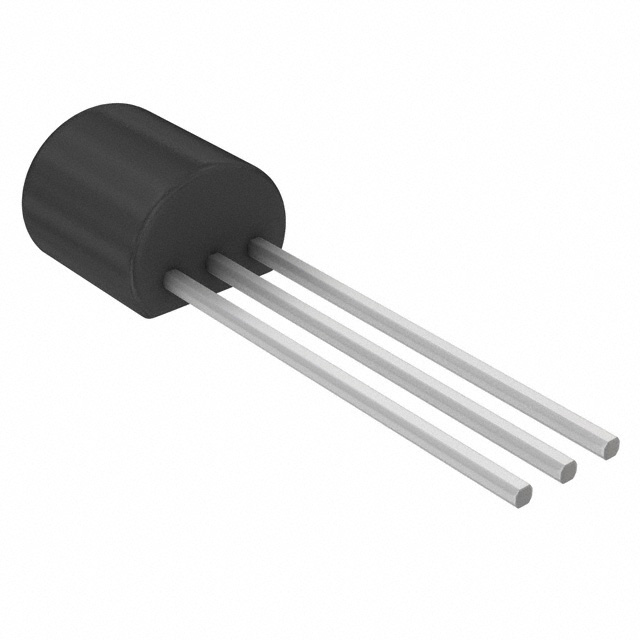

• Package / Case：TO-226-3, TO-92-3 (TO-226AA)
• Supplier Device Package：TO-92
• Grade：-
• Qualification：-

Download product information
