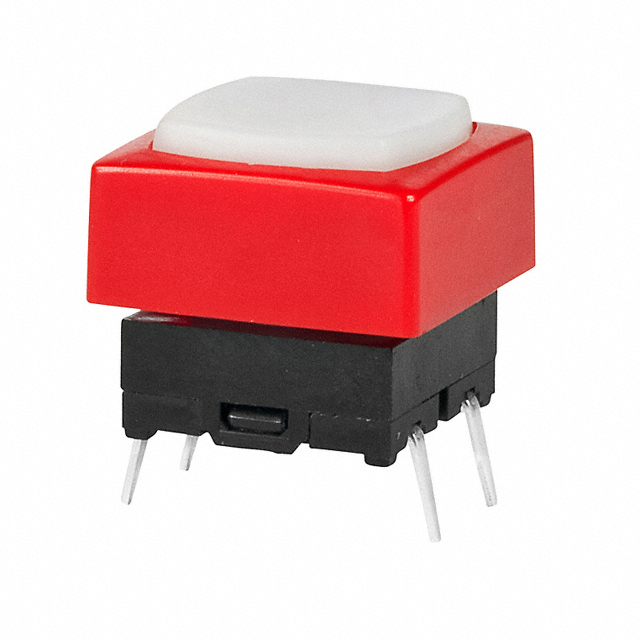

JB15KP-4BC

JB15KP-4BC

$3.88
  • Description：SWITCH TACTILE SPST-NO 0.05A 24V
  • Series：JB
  • Mfr：NKK Switches
  • Package：Tray,Tray

SKU:1ca7e398300d Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：SWITCH TACTILE SPST-NO 0.05A 24V
  • Series：JB
  • Mfr：NKK Switches
  • Package：Tray,Tray
  • Circuit：SPST-NO
  • Switch Function：Off-Mom
  • Contact Rating @ Voltage：0.05A @ 24VDC
  • Actuator Type：Square Button
  • Mounting Type：Through Hole
  • Actuator Height off PCB, Vertical：11.20mm
  • Actuator Length, Right Angle：-
  • Actuator Orientation：Top Actuated
  • Termination Style：PC Pin
  • Outline：10.00mm x 10.00mm
  • Illumination：Non-Illuminated
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Operating Force：176gf
  • Ingress Protection：IP67 - Dust Tight, Waterproof
  • Features：Process Sealed
  • Operating Temperature：-25°C ~ 70°C

Download product information

JB15KP-4BC

How to buy
Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.
Payment Method
Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.
Delivery time
In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.
Freight calculation
Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.
Mode of Transportation
We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.
Return and Refund
Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

Related recommended products

PHAP3305A

PHAP3305A

$0.34
DetailsAdd to cart
3CTL9

3CTL9

Details
3ESHK63CD

3ESHK63CD

$1.79
DetailsAdd to cart
5GTH92061

5GTH92061

$4.04
DetailsAdd to cart
Buying Guide
Summary

NKK Switches JB15KP-4BC is evaluated in Tactile Switches category where failure modes and qualification evidence matter as much as headline ratings. Key specs include Description (SWITCH TACTILE SPST-NO 0.05A 24V), Temperature (-25°C ~ 70°C), Mounting (Through Hole), and Packaging (Tray).

Selection Notes
  • For JB15KP-4BC, validate the operating temperature range (-25°C ~ 70°C) for your environment and margin.
  • Confirm Outline (10.00mm x 10.00mm) and ensure it matches your integration requirements.
  • Confirm the mounting type (Through Hole) matches your assembly process and reliability requirements.
Alternates & Substitutions
  • For Tactile Switches, compare the datasheet test conditions behind key specs and re-check the margins that were tightest during bring-up.
  • When evaluating alternates, treat mounting Through Hole, packaging Tray as non-negotiable unless you are re-spinning the PCB.
  • For switching parts, align contact form SPST-NO and validate life expectancy under your real duty cycle.
  • If you need alternates, provide your key constraints (footprint, electrical limits, interface) and we can suggest options for evaluation.
FAQ

Who is the manufacturer of JB15KP-4BC?
NKK Switches

How do I choose an alternate for JB15KP-4BC?
Match footprint and ratings first, then confirm operating conditions and test conditions behind key specs before approval.

What Features does JB15KP-4BC have?
Process Sealed

What temperature range is listed for JB15KP-4BC?
-25°C ~ 70°C

Application Scenarios

Selecting NKK Switches JB15KP-4BC for Tactile Switches usually comes down to meeting the system constraints that matter most: limits, interfaces, and testability in the real build. In real systems, switching elements are vetted for bounce, failure modes, and derating under inductive loads and repetitive surges. Mechanical tolerances, mounting style, and assembly workflow can be just as important as the electrical ratings. In practice, within field equipment, sealing and contact materials determine long-term reliability under dust and moisture. In automotive modules, compact switching manages pumps and heaters while handling inductive loads and transients. Across appliances, user-facing switches must endure high cycle counts while meeting safety and ingress requirements.

Compatibility Advice
  • For NKK Switches JB15KP-4BC in Tactile Switches, verify ratings, interface levels, thermal headroom, and a repeatable test plan in the real system. This keeps qualification evidence reproducible later.
Project Fit
  • Not ideal when integrating NKK Switches JB15KP-4BC for Tactile Switches, field service conditions are uncertain and wiring/labeling vary, because the behavior cannot be verified in a repeatable way.
