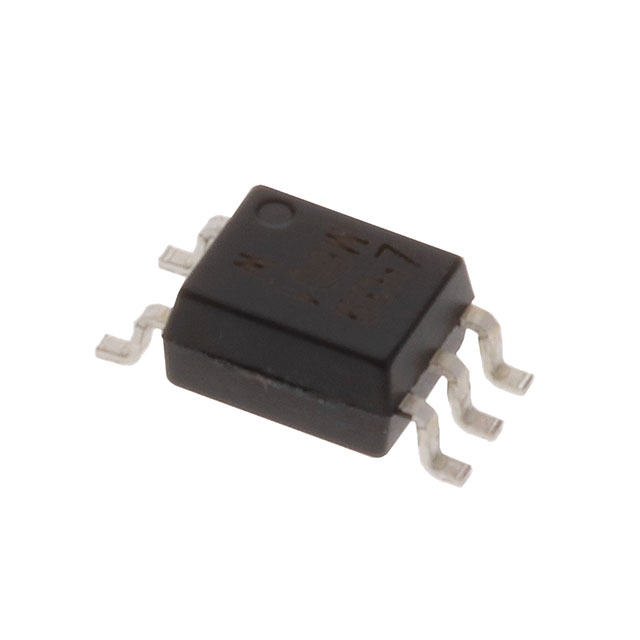

LTV-M601

Product Detailed Parameters

• Description：OPTOISO 3.75KV OPN COLL 5-SOP
• Series：-
• Mfr：Lite-On Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Number of Channels：1
• Inputs - Side 1/Side 2：1/0
• Voltage - Isolation：3750Vrms
• Common Mode Transient Immunity (Min)：10kV/µs
• Input Type：DC
• Output Type：Open Collector, Schottky Clamped
• Current - Output / Channel：50 mA
• Data Rate：15MBd
• Propagation Delay tpLH / tpHL (Max)：75ns, 75ns
• Rise / Fall Time (Typ)：21ns, 7ns
• Voltage - Forward (Vf) (Typ)：1.38V
• Current - DC Forward (If) (Max)：20mA
• Voltage - Supply：2.7V ~ 3.6V, 4.5V ~ 5.5V
• Operating Temperature：-40°C ~ 85°C
• Mounting Type：Surface Mount
• Package / Case：6-SOIC (0.173", 4.40mm Width), 5 Leads
• Supplier Device Package：5-SOP
• Grade：-
• Qualification：-
