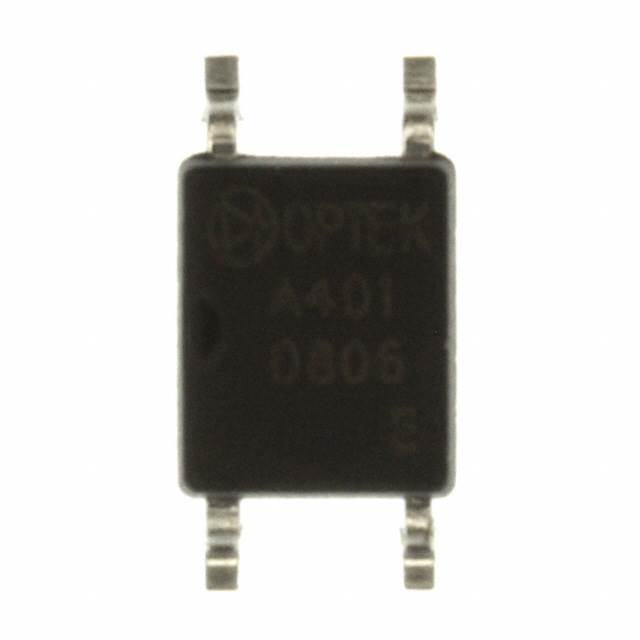

OPIA401BTU

Product Detailed Parameters

• Description：OPTOISOLTR 3.75KV 1CH DARL 4-SOP
• Series：-
• Mfr：TT Electronics/Optek Technology
• Package：Tube
• Number of Channels：1
• Voltage - Isolation：3750Vrms
• Current Transfer Ratio (Min)：1000% @ 1mA
• Current Transfer Ratio (Max)：-
• Turn On / Turn Off Time (Typ)：-
• Rise / Fall Time (Typ)：100µs, 20µs
• Input Type：DC
• Output Type：Darlington
• Voltage - Output (Max)：300V
• Current - Output / Channel：150mA
• Voltage - Forward (Vf) (Typ)：1.2V
• Current - DC Forward (If) (Max)：50 mA
• Vce Saturation (Max)：1.5V
• Operating Temperature：-30°C ~ 100°C
• Mounting Type：Surface Mount
• Package / Case：4-SMD, Gull Wing
• Supplier Device Package：4-SOP (2.54mm)
