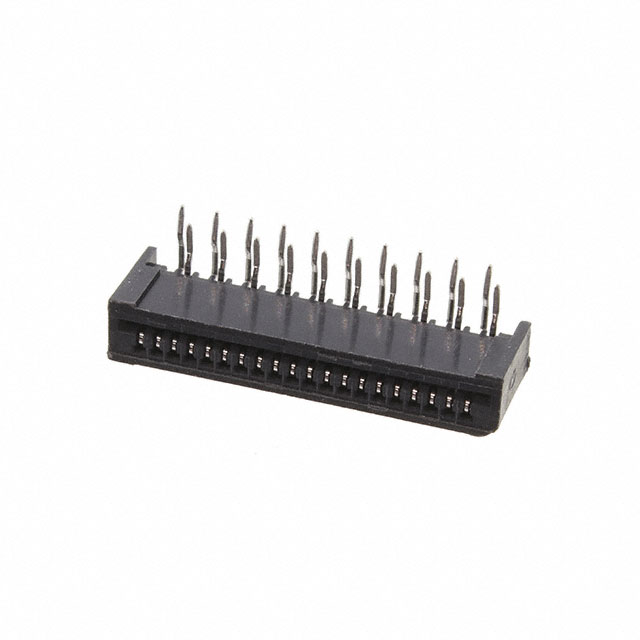

PCB-B-20-SA-25

PCB-B-20-SA-25

$2.16000
  • Description：CONN FFC FPC TOP 20POS 1.25MM RA
  • Series：PCB
  • Mfr：Adam Tech
  • Package：Tube

SKU:30b563a2cc22 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：CONN FFC FPC TOP 20POS 1.25MM RA
  • Series：PCB
  • Mfr：Adam Tech
  • Package：Tube
  • Flat Flex Type：FFC, FPC
  • Mounting Type：Through Hole, Right Angle
  • Connector/Contact Type：Contacts, Top
  • Number of Positions：20
  • Pitch：0.049" (1.25mm)
  • Termination：Kinked Pin
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.197" (5.00mm)
  • Locking Feature：-
  • Cable End Type：Straight
  • Contact Material：Phosphor Bronze
  • Contact Finish：Tin
  • Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
  • Actuator Material：-
  • Features：Low Insertion Force (LIF)
  • Voltage Rating：250V
  • Operating Temperature：-55°C ~ 85°C
  • Material Flammability Rating：UL94 V-0

Download product information

PCB-B-20-SA-25

How to buy
Both online and offline order contacts are acceptable.Products that can be directly ordered on the official website can be placed in the shopping cart for ordering. If you want to inquire about lower wholesale prices, you can contact our product manager to obtain the lowest wholesale prices.
Payment Method
Payment: TT, Western Union, credit cards, PayPal.Customer covers: Shipping, fees, duties, taxes.Contact product manager for contract & procurement process.Let me know if you need help!
Delivery time
Packages will be arranged for delivery within 1 to 2 days after all items arrive at our warehouse. Goods in stock can be shipped within 24 hours. The delivery time depends on the mode of transportation and the delivery destination.
Freight calculation
The freight cost depends on the size, weight and destination of the package. Competitive transportation options are provided through carriers such as DHL, FedEx, SF Express and Deppon Logistics. We also offer freight account services for customers who wish to be billed directly for the freight costs.
Mode of Transportation
We cooperate with DHL, FedEx, SF Express and Deppon Logistics. If you would like to designate a specific logistics service provider, we can also follow your wishes.
Return and Refund
Returns within 60 days of invoice date require original invoice number, warranty card, part photos, and reason/test report. Goods must be resalable. No returns for customer errors. Pre-authorization required.
