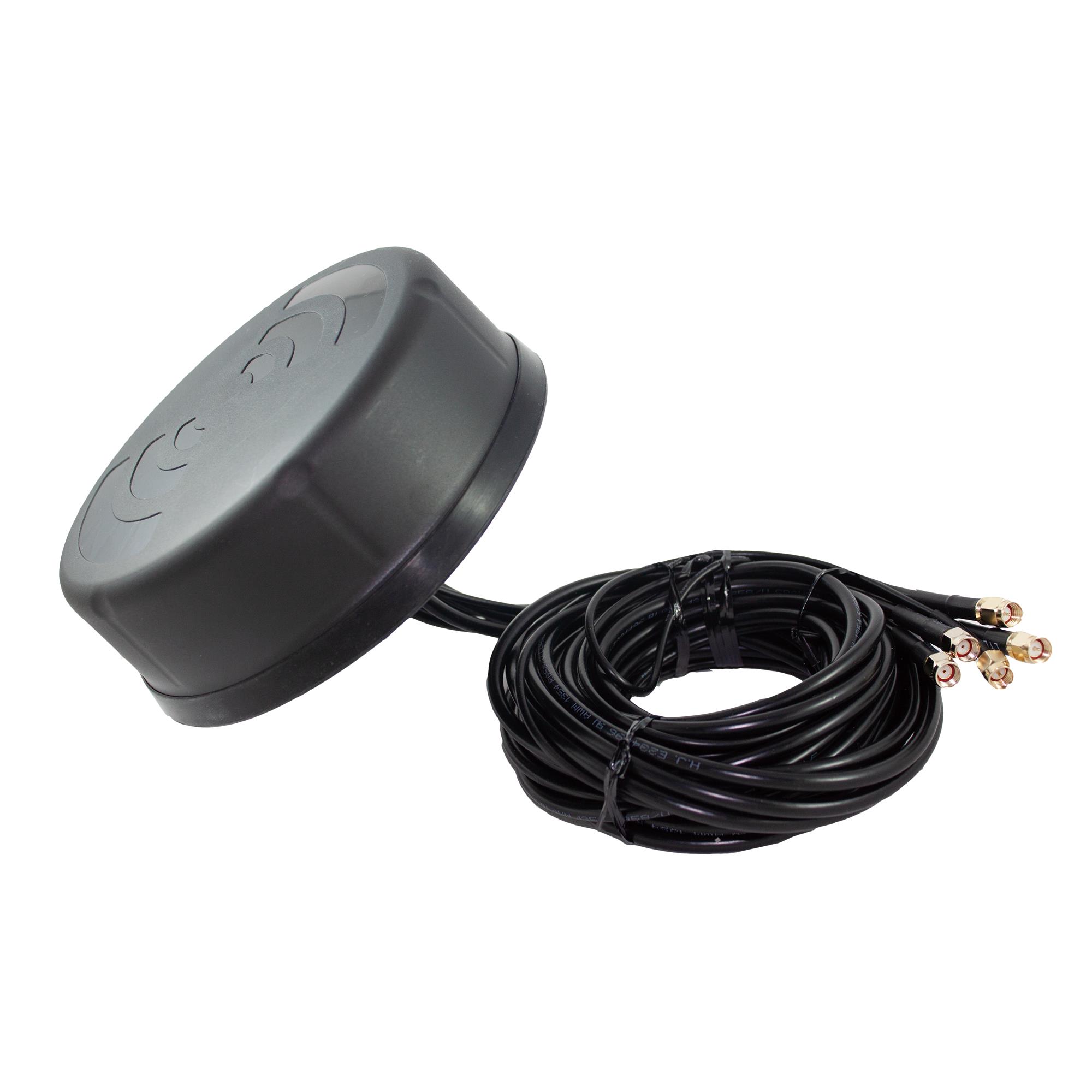

PPF-165A5SNB-B200

PPF-165A5SNB-B200

$125.69000

Description：ANT 5G/WIFI/GNSS MIMO 5-IN-1 SMA
Series：165
Mfr：Joymax Electronics
Package：Box

SKU:b131d280646d Category: RF Antennas Brand: Joymax Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ANT 5G/WIFI/GNSS MIMO 5-IN-1 SMA
Series：165
Mfr：Joymax Electronics
Package：Box
RF Family/Standard：Cellular, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
Frequency Range：617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Module
Number of Bands：10
VSWR：4.7, 2.1, 2.0, 1.6, 1.7, 2.3, 2.0, 1.5, 1.9, 1.7, 1.5, 1.6
Return Loss：-
Gain：3.8dBi, 4.9dBi, 3.3dBi, 3.7dBi, 2.9dBi, 0.2dBi, 2.5dBi, 3.3dBi, 2.2dBi, 29.5dBi, 30.9dBi, 29.2dBi,
Features：Cable - 2m, LNA
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：1.969" (50.00mm)
Applications：2G, 3G, 4G, 5G, C-Band, CBRS, GNSS, LTE, LTE-M, NB-IoT, Wi-Fi, WLAN
Power - Max：5 W

Download product information

PPF-165A5SNB-B200

Both online and offline order contacts are acceptable.Products that can be directly ordered on the official website can be placed in the shopping cart for ordering. If you want to inquire about lower wholesale prices, you can contact our product manager to obtain the lowest wholesale prices.

Payment Method

Payment: TT, Western Union, credit cards, PayPal.Customer covers: Shipping, fees, duties, taxes.Contact product manager for contract & procurement process.Let me know if you need help!

Delivery time

Packages will be arranged for delivery within 1 to 2 days after all items arrive at our warehouse. Goods in stock can be shipped within 24 hours. The delivery time depends on the mode of transportation and the delivery destination.

Freight calculation

The freight cost depends on the size, weight and destination of the package. Competitive transportation options are provided through carriers such as DHL, FedEx, SF Express and Deppon Logistics. We also offer freight account services for customers who wish to be billed directly for the freight costs.

Mode of Transportation

We cooperate with DHL, FedEx, SF Express and Deppon Logistics. If you would like to designate a specific logistics service provider, we can also follow your wishes.

Return and Refund

Returns within 60 days of invoice date require original invoice number, warranty card, part photos, and reason/test report. Goods must be resalable. No returns for customer errors. Pre-authorization required.
