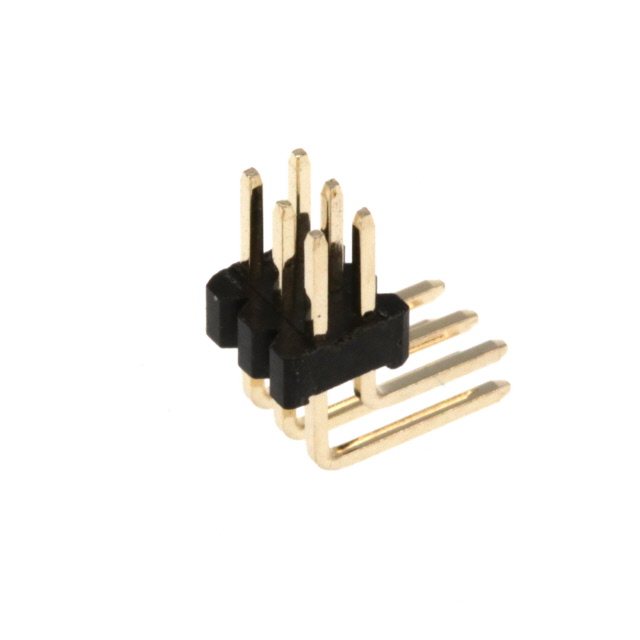

PR20B03HBDN

Product Detailed Parameters

• Description：PIN HEADER, THR, DUAL ROW, 1.27
• Series：-
• Mfr：METZ CONNECT USA Inc.
• Package：Box
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：6
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.118" (3.00mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：-
• Insulation Height：0.059" (1.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：-
• Contact Material：Copper Zinc
• Insulation Material：Polyethylene
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-
