RTQ2533WGQV(2)

Product Detailed Parameters

• Description：IC REG LINEAR POS ADJ 3A 20-VQFN
• Series：-
• Mfr：Richtek USA Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Output Configuration：Positive
• Output Type：Adjustable
• Number of Regulators：1
• Voltage - Input (Max)：6.5V
• Voltage - Output (Min/Fixed)：0.8V
• Voltage - Output (Max)：5.5V
• Voltage Dropout (Max)：0.18V @ 3A
• Current - Output：3A
• Current - Quiescent (Iq)：4 mA
• Current - Supply (Max)：5.5 mA
• PSRR：42dB ~ 39dB (10kHz ~ 500kHz), 40dB ~ 25dB (10kHz ~ 500kHz)
• Control Features：Enable, Power Good, Soft Start
• Protection Features：Over Current, Over Temperature, Reverse Current
• Operating Temperature：-40°C ~ 125°C (TJ)
• Mounting Type：Surface Mount

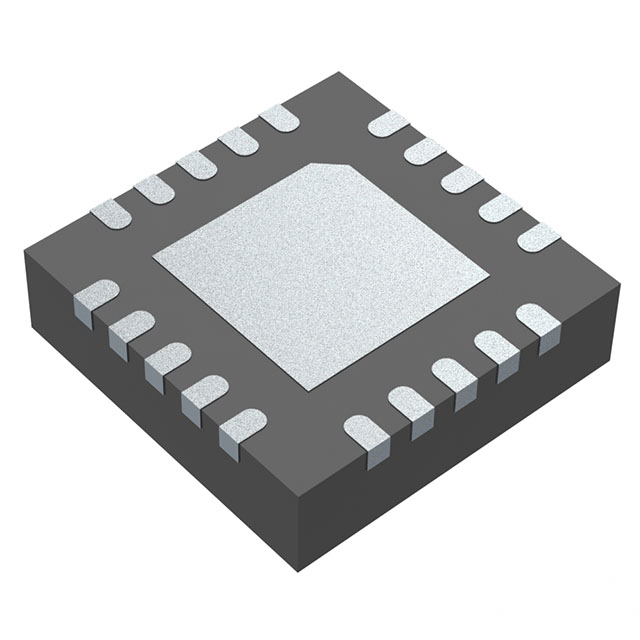

• Package / Case：20-VFQFN Exposed Pad
• Supplier Device Package：20-VQFN (3.5x3.5)
• Grade：-
• Qualification：-
