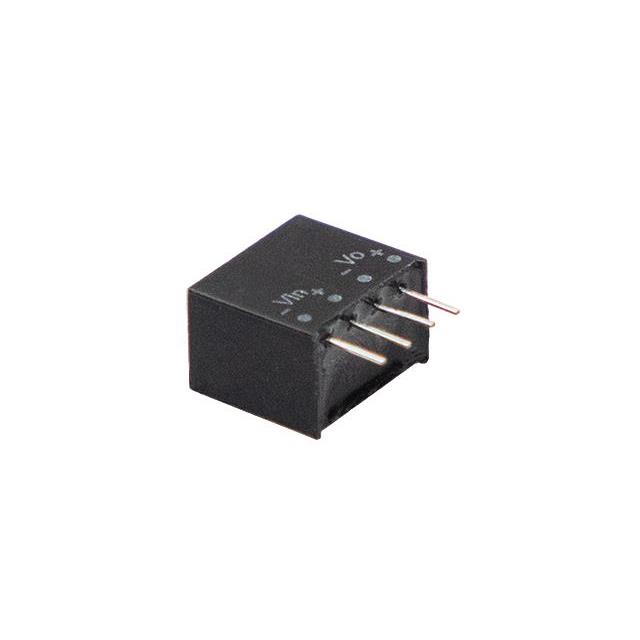

SMU02M-24N

Product Detailed Parameters

• Description：2W;I/P: 12VDC;O/P: 24VDC @84MA;S
• Series：SMU02 (2W)
• Mfr：MEAN WELL USA Inc.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：84mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-
