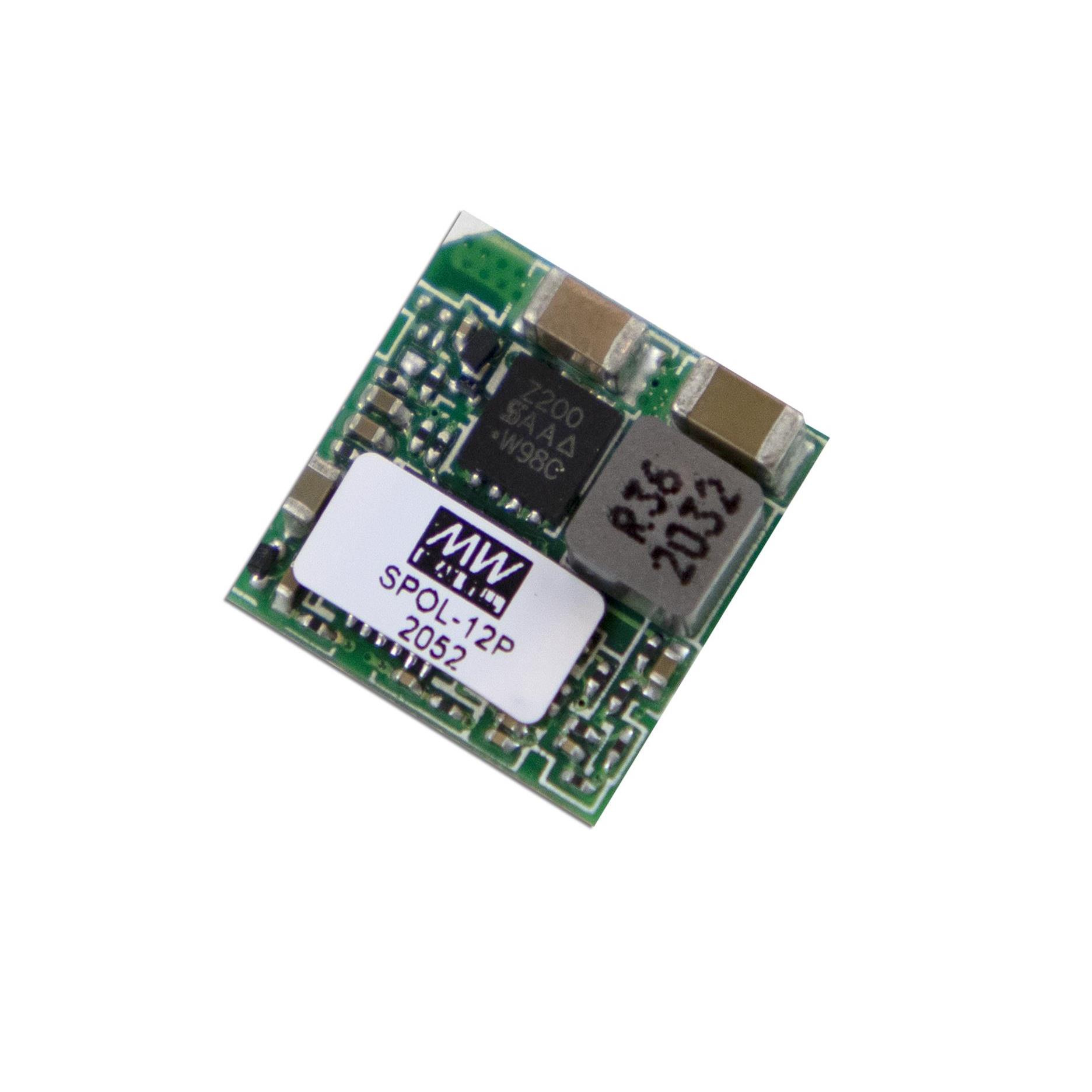

SPOL-12P

Product Detailed Parameters

• Description：DC DC CONVERTER 0.75-3.3V
• Series：SPOL-12
• Mfr：MEAN WELL USA Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：0.6 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A
• Power (Watts)：66 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：91%
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.48" L x 0.48" W x 0.12" H (12.2mm x 12.2mm x 3.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-
