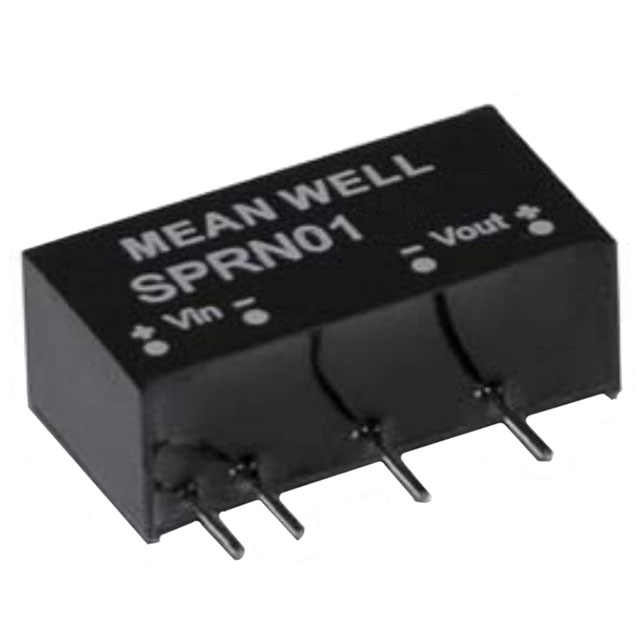

SPRN01O-12

Product Detailed Parameters

• Description：DC/DC CONVERTER
• Series：SPRN01 (1W)
• Mfr：MEAN WELL USA Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：45.6V
• Voltage - Input (Max)：52.8V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：84mA
• Power (Watts)：1.008 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：67%
• Mounting Type：Through Hole
• Package / Case：6-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-
