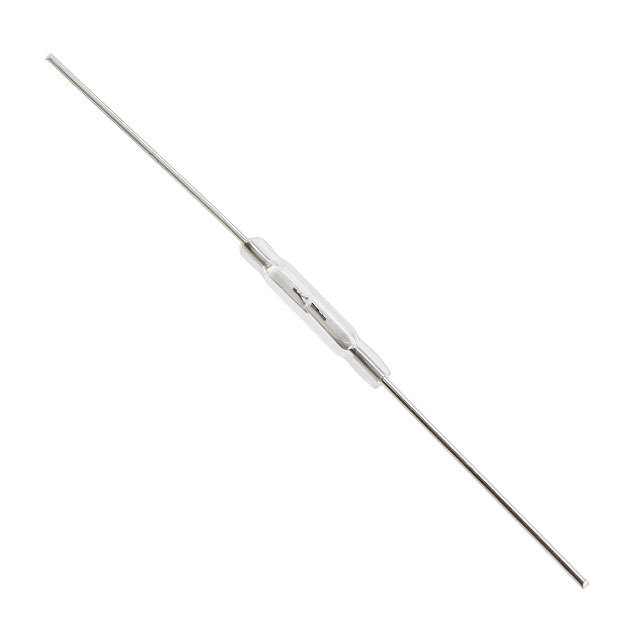

SW GR560/10-15 AT

SW GR560/10-15 AT

  • Description：SWITCH REED SPST-NO 1A 125V
  • Series：GR560
  • Mfr：Standex-Meder Electronics
  • Package：Bulk

SKU:20a76900a058 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：SWITCH REED SPST-NO 1A 125V
  • Series：GR560
  • Mfr：Standex-Meder Electronics
  • Package：Bulk
  • Type：Glass Body Reed
  • Circuit：SPST-NO
  • Current - Switching：1A (AC/DC)
  • Voltage - Switching AC：125 V
  • Voltage - Switching DC：100 V
  • Power - Rated：10VA
  • Operate Time：0.6 ms
  • Release Time：0.1 ms
  • Mounting Type：Through Hole
  • Termination Style：Axial
  • Length - Overall：2.126" (54.00mm)
  • Operating Temperature：-40°C ~ 125°C
  • Current - Carry：1.5A (AC/DC)
  • Operate Range：10 ~ 15AT
  • Release Range：6 ~ 21AT
  • Size - Body：0.091" Dia x 0.559" L (2.30mm x 14.20mm)
  • Height Above Board：-
  • Capacitance：0.2 pF

Download product information
