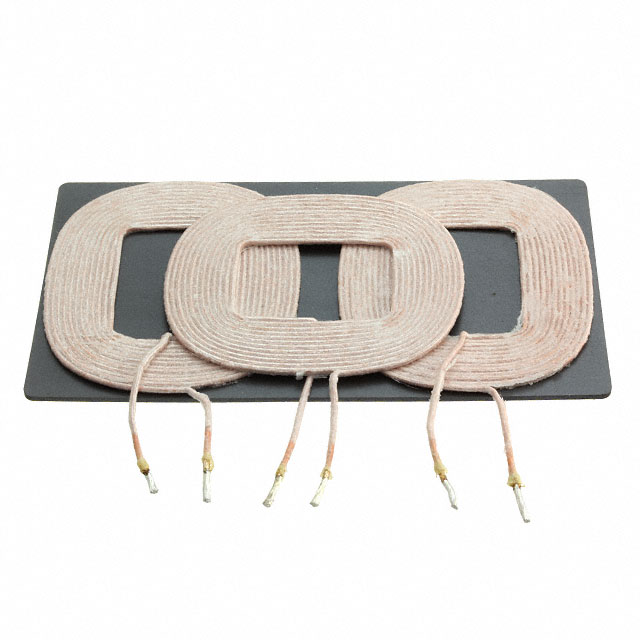

SWC10056AA120-500

SWC10056AA120-500

$20.66000
  • Description：TRANSMITTER 3 COIL 1 LAYER
  • Series：SWC
  • Mfr：Laird-Signal Integrity Products
  • Package：Box

SKU:97db5f76d6bc Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：TRANSMITTER 3 COIL 1 LAYER
  • Series：SWC
  • Mfr：Laird-Signal Integrity Products
  • Package：Box
  • Function：Transmitter
  • Type：3 Coil, 1 Layer
  • Inductance：12.5µH, 11.5µH, 12.5µH
  • Tolerance：±10%
  • DC Resistance (DCR)：65mOhm Max
  • Q @ Freq：90 @ 100kHz
  • Current Rating (Amps)：-
  • Current - Saturation (Isat)：-
  • Frequency - Self Resonant：-
  • Operating Temperature：-40°C ~ 125°C
  • Size / Dimension：3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm)
