TS5A26542YZTR

Product Detailed Parameters

• Description：IC SWITCH SPDTX2 750MOHM 12DSBGA
• Series：-
• Mfr：Texas Instruments
• Package：Tape & Reel (TR),Cut Tape (CT)
• Switch Circuit：SPDT
• Multiplexer/Demultiplexer Circuit：2:01
• On-State Resistance (Max)：750mOhm
• Channel-to-Channel Matching (ΔRon)：50mOhm
• Voltage - Supply, Single (V+)：2.25V ~ 5.5V
• Voltage - Supply, Dual (V±)：-
• Switch Time (Ton, Toff) (Max)：25ns, 20ns
• -3db Bandwidth：43MHz
• Charge Injection：15pC
• Channel Capacitance (CS(off), CD(off))：37pF
• Current - Leakage (IS(off)) (Max)：20nA
• Crosstalk：-63dB @ 1MHz
• Operating Temperature：-40°C ~ 85°C (TA)
• Mounting Type：Surface Mount

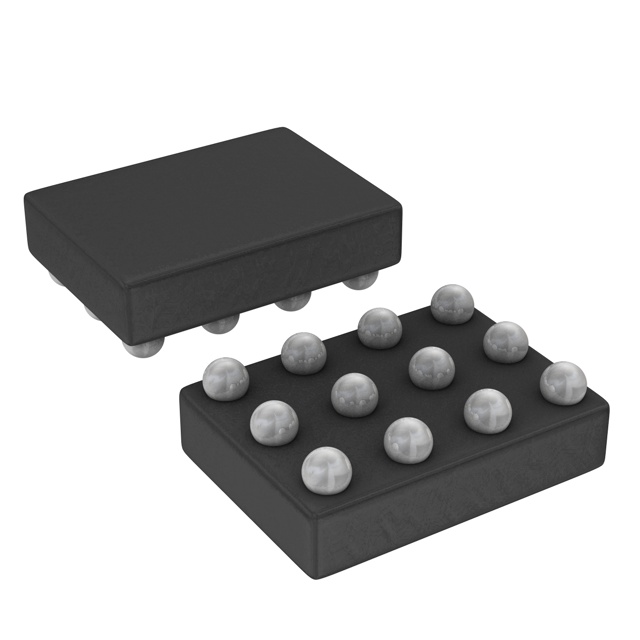

• Package / Case：12-UFBGA, DSBGA
• Supplier Device Package：12-DSBGA (1.9x1.4)
• Number of Circuits：2
• Grade：-
• Qualification：-
