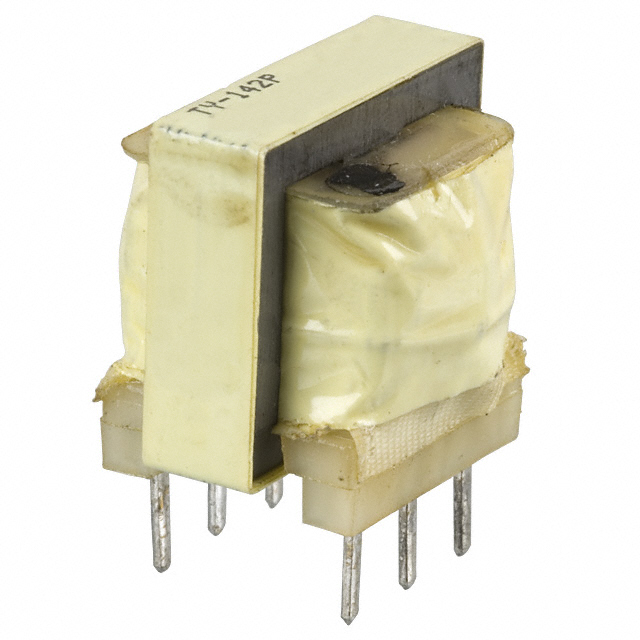

TY-142P-B

TY-142P-B

$5.37000
  • Description：AUDIO XFMR 10KCT / 2KCT TH
  • Series：TY
  • Mfr：Triad Magnetics
  • Package：Bulk

SKU:e1c9c05834fb Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：AUDIO XFMR 10KCT / 2KCT TH
  • Series：TY
  • Mfr：Triad Magnetics
  • Package：Bulk
  • Mounting Type：Through Hole
  • Size / Dimension：0.812" L x 0.700" W (20.62mm x 17.78mm)
  • Height - Seated (Max)：0.740" (18.80mm)
  • Termination Style：PC Pin
  • Turns Ratio - Primary:Secondary：2.24:1
  • Impedance - Primary (Ohms)：10kCT
  • Impedance - Secondary (Ohms)：2kCT
  • DC Resistance (DCR) - Primary：750Ohm
  • DC Resistance (DCR) - Secondary：217Ohm
  • Transformer Type：Data/Voice Coupling
  • Frequency Range：200Hz ~ 15kHz
  • Frequency Response：±2dB
  • Voltage - Isolation：1500V
  • Insertion Loss：1.5dB @ 1kHz
  • Return Loss：26dB
  • Power Level：-
  • Operating Temperature：-20°C ~ 85°C
  • Approval Agency：-
