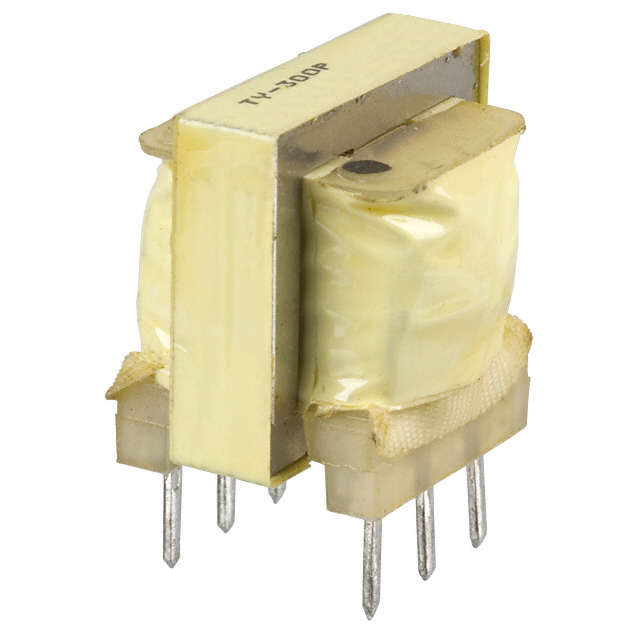

TY-300P-B

TY-300P-B

$5.83000
  • Description：AUDIO XFMR 600 / 600/600 TH
  • Series：TY
  • Mfr：Triad Magnetics
  • Package：Bulk

SKU:a47c37c1abef Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：AUDIO XFMR 600 / 600/600 TH
  • Series：TY
  • Mfr：Triad Magnetics
  • Package：Bulk
  • Mounting Type：Through Hole
  • Size / Dimension：0.812" L x 0.700" W (20.62mm x 17.78mm)
  • Height - Seated (Max)：0.740" (18.80mm)
  • Termination Style：PC Pin
  • Turns Ratio - Primary:Secondary：01:02.5
  • Impedance - Primary (Ohms)：600
  • Impedance - Secondary (Ohms)：600/600
  • DC Resistance (DCR) - Primary：172Ohm
  • DC Resistance (DCR) - Secondary：66Ohm, 66Ohm
  • Transformer Type：Data/Voice Coupling
  • Frequency Range：300Hz ~ 3.5kHz
  • Frequency Response：-
  • Voltage - Isolation：1500VAC
  • Insertion Loss：0.8dB Typ
  • Return Loss：30dB Typ
  • Power Level：-45dB ~ 7dB
  • Operating Temperature：-20°C ~ 85°C
  • Approval Agency：-
