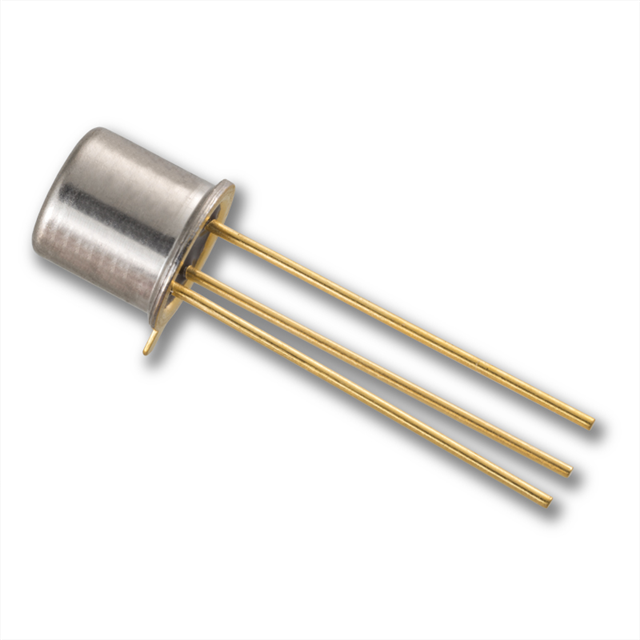

U309 TO-18 3L

Product Detailed Parameters

• Description：JFET N-CH 25V TO18-3
• Series：U309
• Mfr：Linear Integrated Systems, Inc.
• Package：Bulk
• FET Type：N-Channel
• Voltage - Breakdown (V(BR)GSS)：25 V
• Drain to Source Voltage (Vdss)：-
• Current - Drain (Idss) @ Vds (Vgs=0)：12 mA @ 10 V
• Current Drain (Id) - Max：-
• Voltage - Cutoff (VGS off) @ Id：1 V @ 1 nA
• Input Capacitance (Ciss) (Max) @ Vds：4pF @ 10V
• Resistance - RDS(On)：35 Ohms
• Power - Max：500 mW
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Through Hole
• Package / Case：TO-206AA, TO-18-3 Metal Can
• Supplier Device Package：TO-18-3
• Grade：-
• Qualification：-
