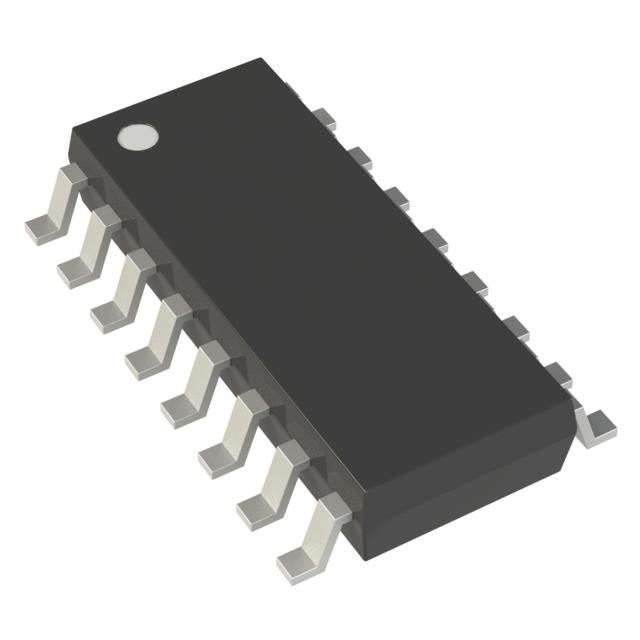

U6820BM-MFP

U6820BM-MFP

$2.53000

Description：IC HALF BRIDGE DRIVER 16SOIC
Series：-
Mfr：Microchip Technology
Package：Tube

SKU:6c9941f7818d Category: Full Half-Bridge (H Bridge) Drivers Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC HALF BRIDGE DRIVER 16SOIC
Series：-
Mfr：Microchip Technology
Package：Tube
Output Configuration：Half Bridge (4)
Applications：General Purpose
Interface：SPI
Load Type：Inductive
Technology：BCDMOS
Rds On (Typ)：4Ohm LS, 6.25Ohm HS
Current - Output / Channel：-
Current - Peak Output：50mA
Voltage - Supply：4.5V ~ 5.5V
Voltage - Load：6V ~ 18V
Operating Temperature：-40°C ~ 150°C (TJ)
Features：Auto Restart, Status Flag
Fault Protection：Current Limiting, ESD, Short Circuit, Over Temperature, Over Voltage, UVLO
Mounting Type：Surface Mount
Package / Case：16-SOIC (0.154", 3.90mm Width)
Supplier Device Package：16-SOIC
Grade：-
Qualification：-

Download product information
