UM4684H

Product Detailed Parameters

• Description：IC SWITCH SPDT X 2 800MOHM 10CSP
• Series：-
• Mfr：Union Semiconductor International Limited
• Package：Tape & Reel (TR)
• Switch Circuit：SPDT
• Multiplexer/Demultiplexer Circuit：2:01
• On-State Resistance (Max)：800mOhm
• Channel-to-Channel Matching (ΔRon)：500mOhm (Max)
• Voltage - Supply, Single (V+)：1.8V ~ 5.5V
• Voltage - Supply, Dual (V±)：-
• Switch Time (Ton, Toff) (Max)：82ns, 73ns
• -3db Bandwidth：20MHz
• Charge Injection：21pC
• Channel Capacitance (CS(off), CD(off))：10pF
• Current - Leakage (IS(off)) (Max)：2nA
• Crosstalk：-69dB @ 100kHz
• Operating Temperature：-40°C ~ 85°C
• Mounting Type：Surface Mount

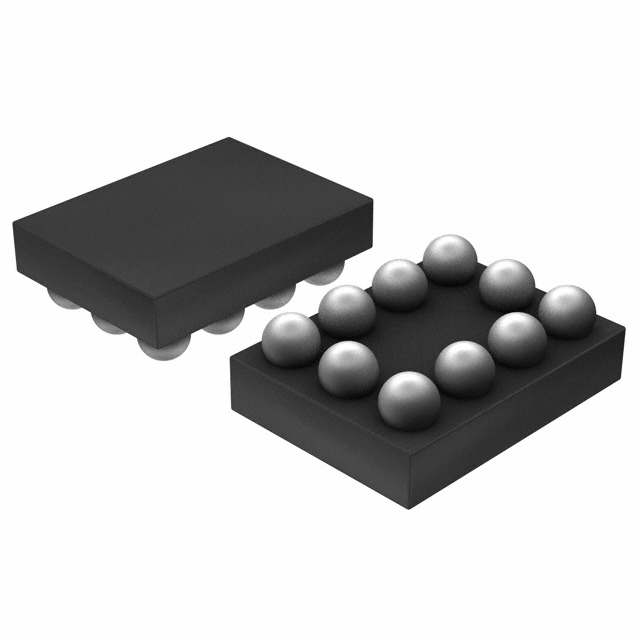

• Package / Case：10-WFBGA, CSPBGA
• Supplier Device Package：10-CSP (2.05x1.55)
• Number of Circuits：2
• Grade：-
• Qualification：-
