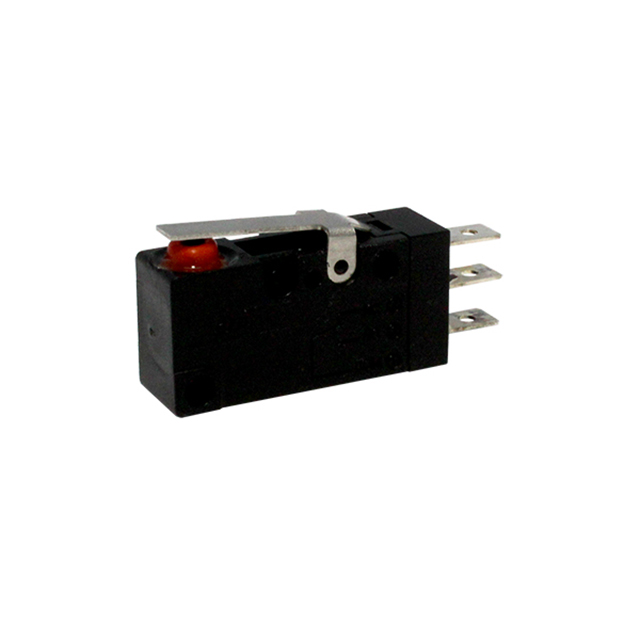

VM3SCQF3002L04

VM3SCQF3002L04

$3.60
  • Description:SWITCH LIMIT SPDT 10A 125V
  • Series:VM3S
  • Mfr:CIT Relay and Switch
  • Package:Tray

SKU:2b2306211ced Category: Brand:


  • Quantity
    • -
    • +
  •
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:SWITCH LIMIT SPDT 10A 125V
  • Series:VM3S
  • Mfr:CIT Relay and Switch
  • Package:Tray
  • Circuit:SPDT
  • Switch Function:On-Mom
  • Current Rating (Amps):10A (AC), 6A (DC)
  • Voltage Rating - AC:125 V
  • Actuator Type:Lever, Straight
  • Mounting Type:Chassis Mount
  • Termination Style:Quick Connect - 0.187" (4.7mm)
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:-
  • Operating Force:300gf
  • Release Force:250gf
  • Operating Position:0.591" (15.00mm)
  • Pretravel:0.080" (2.0mm)
  • Differential Travel:0.040" (1.0mm)
  • Overtravel:0.020" (0.5mm)
  • Operating Temperature:-40°C ~ 120°C
  • Voltage Rating - DC:36 V

Download product information

VM3SCQF3002L04

Buying Guide
Summary

CIT Relay and Switch VM3SCQF3002L04 is an electronic component in Limit Switches category. Key specs: description: SWITCH LIMIT SPDT 10A 125V; series: VM3S; packaging: Tray; temperature: -40°C ~ 120°C; mounting: Chassis Mount.

Selection Notes
  • For VM3SCQF3002L04, confirm mounting Chassis Mount to ensure footprint compatibility.
  • For VM3SCQF3002L04, validate the operating temperature range (-40°C ~ 120°C) against your environment.
  • For VM3SCQF3002L04, if you plan to run near limits, apply derating and validate on your worst-case operating conditions (packaging Tray; temperature -40°C ~ 120°C).
FAQ

How can I request a quote for VM3SCQF3002L04?
Send the part number (VM3SCQF3002L04), quantity, target delivery date, and any required packaging or documentation.

Who is the manufacturer/brand for VM3SCQF3002L04?
CIT Relay and Switch

What is the mounting type of VM3SCQF3002L04?
Chassis Mount

What is the supply current of VM3SCQF3002L04?
10A (AC), 6A (DC)

Application Scenarios
CIT Relay and Switch VM3SCQF3002L04 in the Limit Switches category is typically selected when engineers need predictable, spec-driven behavior in a production design. Well-chosen switching elements improve safety and reduce maintenance costs. They provide controlled switching for signals and power, enabling isolation, routing, and safe user interaction. In field equipment, sealing and contact material choices determine long-term reliability under contamination. In industrial panels, switches and relays handle interlocks and actuator control in dusty environments with vibration. Overall, it simplifies bring-up and troubleshooting by making the design easier to validate and support in production.
