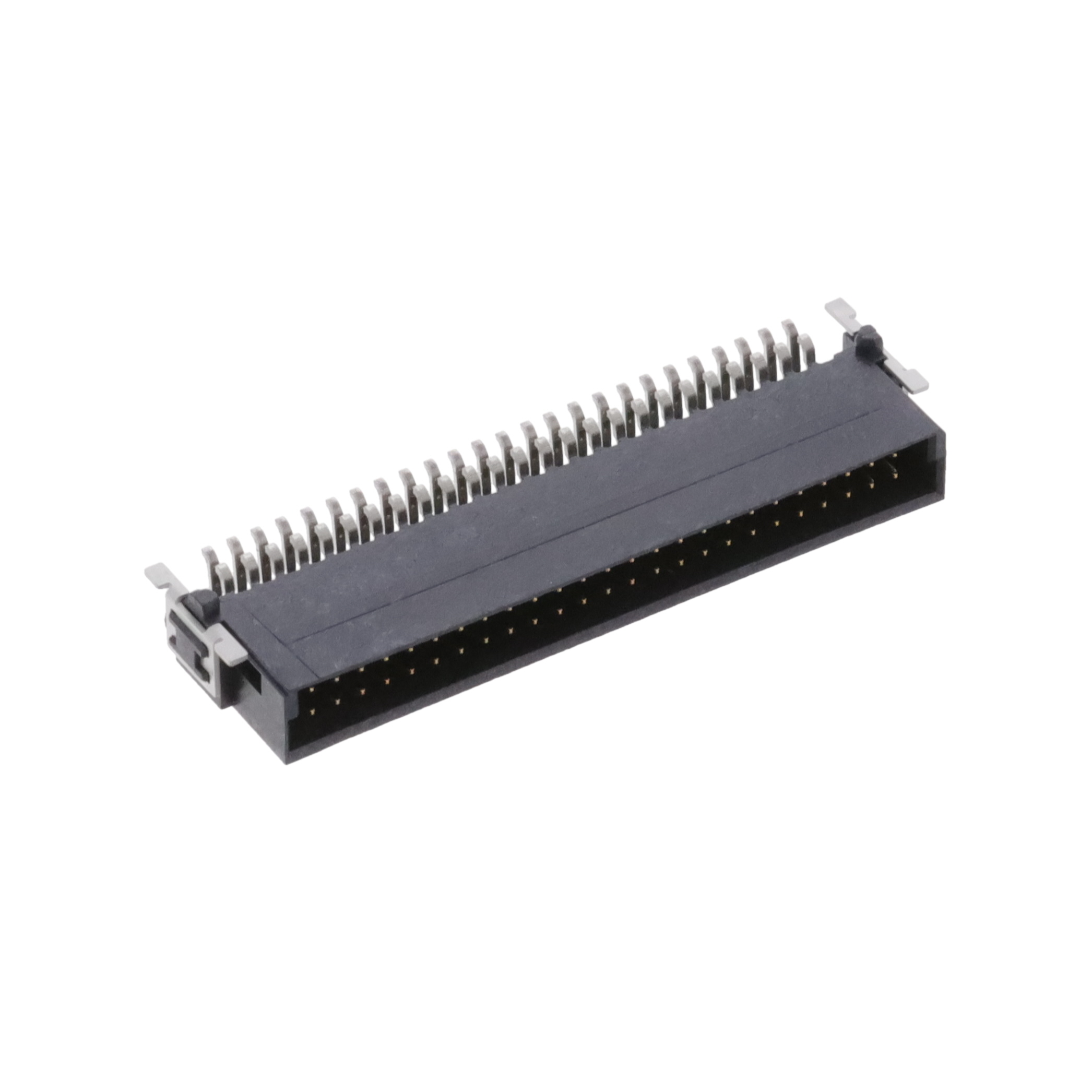

XH5A-5015-N

Product Detailed Parameters

• Description：PLUG, RIGHT-ANGLE, SMT PINS
• Series：XH5-N
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：50
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.167" (4.25mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：Board Guide, Solder Retention
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A
• Voltage Rating：100VAC
