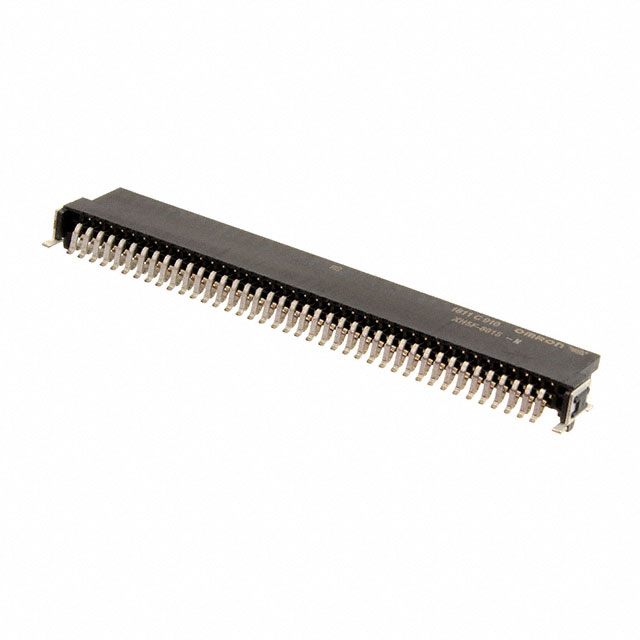

XH5F-8015-N

Product Detailed Parameters

• Description：SOCKET, RIGHT-ANGLE, SMT PINS
• Series：XH5-N
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Socket
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：80
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.146" (3.70mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Solder Retention
• Current Rating (Amps)：1A
• Voltage Rating：100VAC
