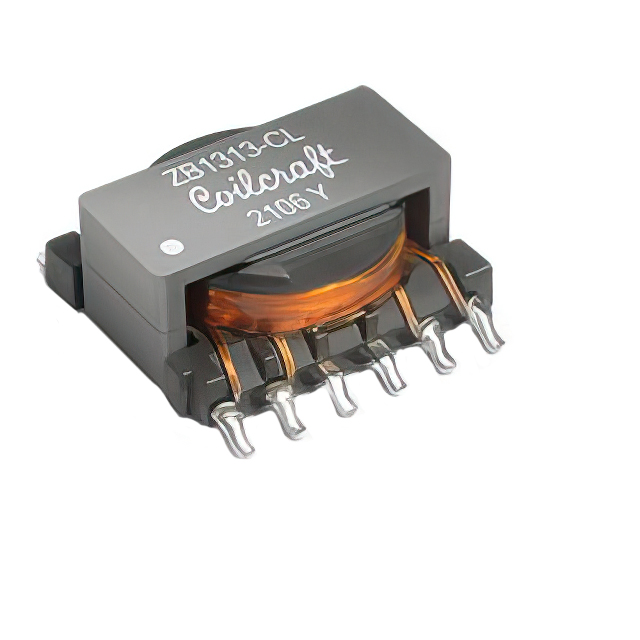

ZB1313-CLD

ZB1313-CLD

$7.60000
  • Description：XFMR FLYBCK DC/DC CONV 10.5UH SM
  • Series：ZB1313-CL
  • Mfr：Coilcraft
  • Package：Strip

SKU:834a6f143167 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：XFMR FLYBCK DC/DC CONV 10.5UH SM
  • Series：ZB1313-CL
  • Mfr：Coilcraft
  • Package：Strip
  • Type：For DC/DC Converters
  • Applications：Flyback Converters
  • Intended Chipset：MAX17690
  • Chipset Manufacturer：Maxim Integrated
  • Voltage - Primary：18 ~ 38V
  • Voltage - Auxiliary：-
  • Voltage - Isolation：1500Vrms
  • Inductance @ Frequency：10.5µH @ 150kHz
  • Frequency：163kHz
  • Operating Temperature：-40°C ~ 85°C
  • Mounting Type：Surface Mount
  • Size / Dimension：-
  • Height - Seated (Max)：0.291" (7.40mm)
  • Footprint：0.661" L x 0.642" W (16.80mm x 16.30mm)
  • Style：Wirewound
  • Grade：-
  • Qualification：-

Download product information
