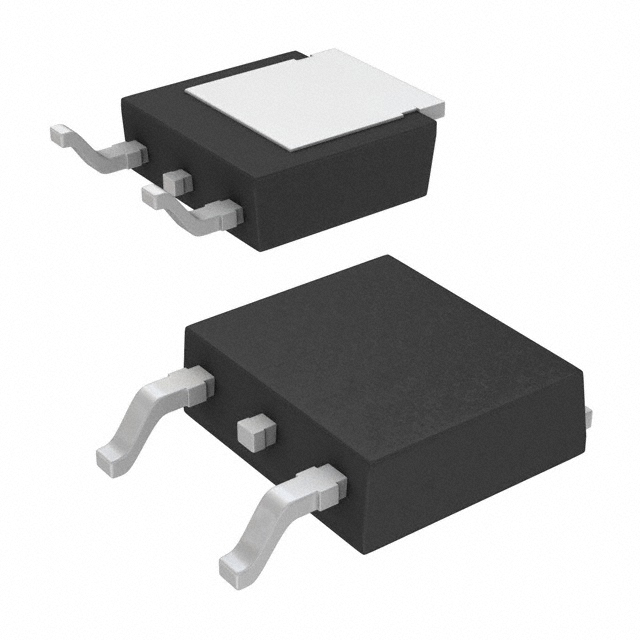

A transistor is a semiconductor device that serves as an electronic switch or amplifier, controlling current flow through one material type (usually silicon) by applying a voltage or current to another. Structurally, transistors are three-terminal components—commonly configured as emitter, base, and collector (in BJTs), or source, gate, and drain (in FETs). Since their invention, transistors have become fundamental to all modern electronics, from digital logic circuits to analog signal processing. Unlike earlier vacuum tubes, transistors are compact, reliable, and energy-efficient, operating by manipulating electron or hole movement across p-n junctions or insulated gates. Understanding the differences between transistor types—BJTs, MOSFETs, IGBTs, JFETs, and PUTs—can help you select the most appropriate component based on function, power requirements, and signal characteristics. Types of Transistors Bipolar Junction Transistors (BJTs), including NPN and PNP configurations, are current-controlled devices where base current modulates a larger collector-to-emitter current. Known for their high current gain and linear amplification characteristics, BJTs are ideal for analog applications such as audio amplification or low-frequency signal conditioning. However, their relatively low input impedance results in greater power consumption compared to field-effect devices. Field-Effect Transistors (FETs), particularly MOSFETs (Metal-Oxide-Semiconductor FETs), are voltage-controlled with very high input impedance. They regulate current via an electric field applied across an insulated gate, making them highly efficient for digital switching applications. N-channel MOSFETs generally offer superior conductivity and switching speed over P-channel devices, making them the preferred choice in power electronics and logic circuits. Insulated Gate Bipolar Transistors (IGBTs) combine the gate control of MOSFETs with the output drive of BJTs, resulting in a device that excels in high-voltage, high-current applications. They\'re widely used in power inverters, motor drives, and energy conversion systems where switching efficiency and robustness are critical. Junction Field-Effect Transistors (JFETs) provide excellent performance in low-noise, high-impedance analog circuits. Though largely replaced by MOSFETs in many roles, JFETs still serve a purpose in RF amplification and precision signal conditioning due to their simplicity and stable characteristics. Programmable Unijunction Transistors (PUTs) are specialized for use in timing circuits, waveform generation, and trigger control. These devices operate by establishing a threshold voltage at which they rapidly switch, making them useful in oscillators and control systems.

Screen Default Ranking Price By Date
Select productsMfrDescriptionPackageSupplier Device PackageMounting TypeSeriesOperating Temperature
Microsemi CorporationRF TRANS NPN 65V 500MHZ 55JTBulk55JTChassis Mount-200°C (TJ)
Microsemi CorporationRF TRANS NPN 60V 400MHZ 55JTBulk55JTChassis Mount-200°C (TJ)
03N06
03N06
$0.31000
Goford SemiconductorN60V,RD(MAX)<100M@10V,RD(MAX)<12Tape & Reel (TR),Cut Tape (CT)SOT-23Surface MountTrenchFET®-55°C ~ 150°C (TJ)
03N06L
03N06L
$0.41000
Goford SemiconductorN60V,RD(MAX)<100M@10V,RD(MAX)<12Tape & Reel (TR),Cut Tape (CT)SOT-23-3Surface MountTrenchFET®-55°C ~ 150°C (TJ)
0510-50A
0510-50A
$315.02000
Microsemi CorporationRF TRANS 27V 500MHZ 1GHZ 55AVBulk55AVChassis Mount-200°C (TJ)
06N06L
06N06L
$0.05000
Goford SemiconductorMOSFET N-CH 60V 5.5A SOT-23-3LTape & Reel (TR)SOT-23-3Surface MountTrenchFET®-55°C ~ 150°C (TJ)
0910-60M
0910-60M
$256.73000
Microsemi CorporationRF TRANS NPN 65V 1GHZ 55AWBulk55AWChassis Mount-200°C (TJ)
Microsemi CorporationRF TRANS NPN 55V 1.215GHZ 55CTBulk55CTChassis Mount-200°C (TJ)
Add ComparisonUp to 4 can be added
